Summary

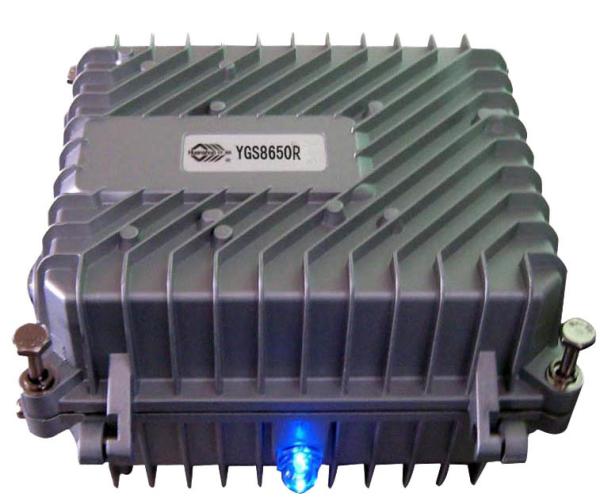

The YGS86/10050R outdoor four-output optical receiver is a low optical power optical receiving device designed to adapt to the NPON network architecture EPON+EOC. It adopts optoelectronic integrated module or high sensitivity photocell, low noise front GaAs amplification chip, and the last stage adopts UK OEI gallium arsenide power double amplification module, the maximum output level can reach 4×104/4×108dBuV(YGS10040R); This machine is also equipped with high-precision lightning protection switching power supply, light control AGC automatic output level control, light receiving power LED digital display, EOC inserter(data channel 5~65MHz). Due to the superior performance of the main equipment and the well-designed circuit, the performance index is high and the reliability is good. At the same time, in order to solve the operator equipment management and two-way network transformation, the machine has added an optional network management transponder with EOC duplexer, which can realize HFC network management system monitoring and EOC insertion function through Ethernet network.

Features

█ High Performance: low optical power receiving, -2dBm reception, CNR≥51dB better than the national standard;

█ High Control: optical control AGC, output level is±1dB according to the nominal value when -7~+2dBm;

█ Reliability: anti-static amplifier tube, lightning protection switching power supply, low power consumption and high efficiency;

█ Intuitiveness: off-board bulb power & light power blue-shutter indication, and LED digital display;

█ Built-in EOC Insertion Function (data channel 5~65MHz);

█ Network Management: optional network management transponder, full network management monitoring, mobile phone SMS alarm.

Technical Specifications

No.	Item	Unit	YGS8650R	YGS10050R
1	optical wavelength	nm	1310, 1550 dual windows
2	optical receiving power	dBm	-9~+2
3	optical reflection loss	dB	>57
4	RF frequency range	MHz	47~1000
5	flatness	dB	±0.718
6	nominal output level	dBuV	optical control AGC receiving range -7~+2dBm, 2x108/112 or 4x104/108dBuv
7	AGC stability	dB	±1 dB(MAX: @-7dBm~+2dBm)
8	return loss	dB	≥16(47~550MHz)≥14(550~1000MHz)
9	RF output impedance	Ω	75
10	equivalent input noise current	PA /	≤8
11	tested port accuracy	dB	-20±1
12	C/N(note)	dB	≥51
13	C/CTB(note)	dB	≥65
14	C/CSO(note)	dB	≥65
15	working environment temperature	℃	-25~+55
Note: Under the specified link loss condition, 59 PAL-D analog TV channel signals are configured in the 550MHz frequency range, digital modulated signals are transmitted in the frequency range of 550MHz to 1000MHz, and the level of the digital modulated signal(8 MHz bandwidth)Internally, the carrier level of the analog signal is 10 dB lower, and the optical receiver input optical power is -3 dBm, and C/CTB, C/CSO, and C/N are measured.
