Specifications
Brand Name :
HUANSHUN
Model Number :
HSGS10076N/2
Place of Origin :
CHINA
Certification :
China CCC (2015011608758829)
MOQ :
500pcs
type :
Network management type double output
optical receiving wavelength range :
1290-1600 nm
mutual isolation :
≥40(1490/1550)dB
response rate :
≥0.85A/W
optical reflection loss :
≥50 dB
fiber optic adapter/connector :
SC/APC
Price :
Negotiable
Packaging Details :
safety packing
Delivery Time :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Description

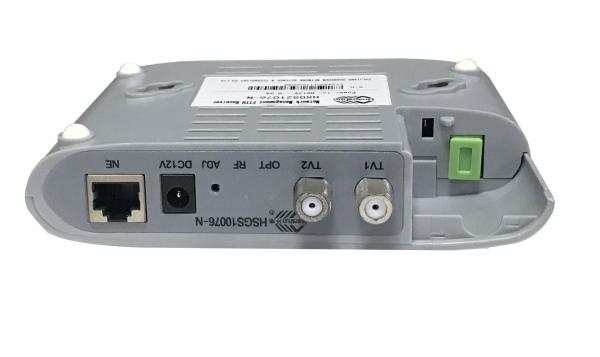

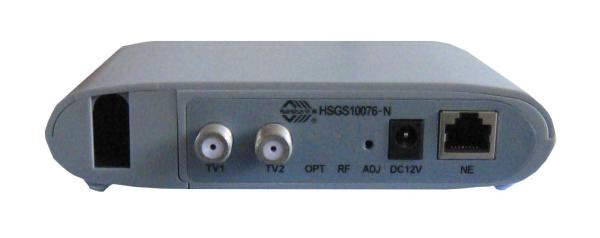

2.7 FTTH Optical Receiver Network Management Double Output

Summary

Huanshun HSGS10076N/2 series Optical Receiver is specially designed for the FTTH application of the CATV network. Compact Structure, Good Appearance & Convenient Application. Even under the bandwidth up to 1000Mhz, it can also provide a Stable Output Level and Excellent Performance Indicators, which has the wide range of optical power working range.

This series of Optical Receiver use Ultra Low Optical Power Receiving Technology, all Gallium Arsenide Amplify, Optical Control AGC function, the Output Level of RF 76dBuv is stable when the optical receiving power is -15 to -5dBm. SNMP network management software can monitor and control the online status, input optical power, output RF monitoring, product temperature and other parameters of the device.

Features

█ Ultra Low -18dBm Optical Power Receiving MER>28dB, 1000MHz Working Wavelength;

█ Stable and Reliable AGC Control Function, -15～-5dBm/RF76dBuv Constant Output;

█ Perfect Surge Suppression Circuit, Improving Lightning Protection & Surge Shock Prevention Ability;

█ Power Supply, Optical Power Working Condition LED panel display;

█ Low Power designed, Device Total Power Consumption less than 2.0W;

█ Optional SNMP Network Management Function, To achieve Remote Network Management and Local Monitoring;

█ Main Device's Performance pass National Broadcast Inspection&Testing, and obtain the National CATV Admission Certificates;

█ Whole Device's Performance is detected by EMC and Safety Performance Inspection, certified by National Mandatory Product (CCC).

Technical Specifications

Item Unit HSGS10076N/2 HSGS10076DN/2
Optical Characteristics optical receiving wavelength range nm 1290～1600 1540～1560
PON port wavelength nm / 1310/1490
mutual isolation dB / ≥22(1490/1550)
response rate A/W ≥0.85
optical receiving power range dBm -2～-18(suggested-9～-12)
optical reflection loss dB ≥50
fiber optic adapter/connector / SC/APC IN:SC/APC,PON:SC/APCUPC
RF Characteristics bandwidth/unevenness MHz/dB 47～1000/≤±1
output level dBuv 2×72±1(-15～-5dBm)
reflection loss dB ≥14(characteristic impedance75Ω)
RF output port / metric or british system(2-way output)
MER(closed equilibrium) dB ≥25(64QAM)≥31(256QAM) -12dBm receive, optical link 94 digital channels
MER(open equilibrium) dB ≥32(64QAM)≥34(256QAM)-12dBm receive, optical link 94 digital channels
BER / ≤1×10-4(measure at least 100bits)
CNR/CTB/CSO dB ≥44≥58≥58(-9dBm/2×72dBuv )
Other Index network port / Ntype RJ45 1port(support SNMP&WEB)
Power supply/consumption V/W external AC90～255V→DC12/3
working/storage temperature ℃ -30～55/-40～75
working/humidity % 5～80(no condensation)
structure size mm 140×115×30

Application

Huanshun Network Management Model FTTH Optical Receiver is based on the optical receiver with added network management function, general model double output + network management model is HSGS10076N/2, filter model double output + network management model is HSGS10076DN/2, WDM model double output+ network management model is HSGS10076WN/2. The application way is to add the RJ45 network port on the original mode, it can be directly connected with the LAN and combined with the HFC Network Management Software to realize function of device monitoring. See network management FTTH optical receiver application schematic diagram and CIS HFC-FTTH optical receiving network management diagram in details:

FTTH Products Network Management Double Output HSGS10076N/2 1290～1600 nm

FTTH Optical Receiver with Network Management Application Diagram

FTTH Products Network Management Double Output HSGS10076N/2 1290～1600 nm

Huanshun® HFC-FTTH optical receipt network management

Order Info.

Product Name Model Functional Description

FTTH optical receiver

(NMS double output)

 HSGS10076N/2 1290～1565nm reception,-5～-15dBm/RF 2×72dBuv Constant Output,(RJ45 standard network management transponder)RJ45 Standard Network Management transponder,External 90~255V 12V 0.5A Power Adapter

FTTH optical receiver

(NMS Filter double output)

 HSGS10076DN/2 1540～1565nm reception,-5～-15dBm/RF 2×72dBuv Constant Output,(RJ45 standard network management transponder)RJ45 Standard Network Management transponder,External 90~255V 12V 0.5A Power Adapter
