HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps
HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps
HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps
HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps
HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps
HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps
Specifications
Brand Name :
HUANSHUN
Model Number :
HSO1004
Place of Origin :
CHINA
Certification :
China Telecom and CCC Certification
MOQ :
100pcs
Working Wavelength :
TX1310,RX1490 nm
Optical Transmit Power :
-1～+4 dBm
Optical Adapter :
10 / 100Mbps
Size :
130×60×22 mm
Model :
HSO1004
Product Name :
EPON ONU
Price :
Negotiable
Packaging Details :
safety packing
Delivery Time :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Description

Summary

Huanshun HSO1004 is EPON system End-User Devices, through EPON Passive Optical Network to terminate the Service which transmitted from OLT(Optical Line Terminal). The Device works with OLT, and so ONU can provide various Broadband Services to the Connected Users. It meets the “YD/T 1475-2006 Access Network Technology, Ethernet Based Passive Optical Network (EPON)” and “China-Telecom EPON Equipment Technical Requirements” in the corresponding ONU Equipment Requirements, and obtains the China National Industry and Informatization Departments Telecommunications Equipment Access Licenses. This Device meets the FTTX & FTTH Applications of Broadcast Two-Way Network, supports the Mainstream Manufacturers OLT Hybrid Network, Minimizing Saving the Operator’s Cost of Building The Cable network.

Features

█ Host Device Performance passed China National Industry and Informatization Departments Inspection & obtains Telecommunications Equipment Access Licenses;

█ Whole Device’s Performance passed EMC and Safety Detection and obtain National Mandatory Product of China(2015011608758829);

█ ONU support EPON, 10G EPON, Compatibility with Mainstream OLT Firms;

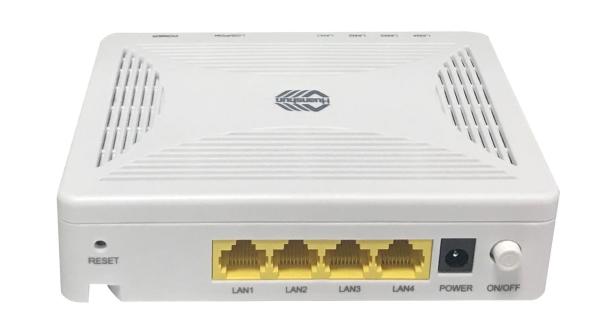

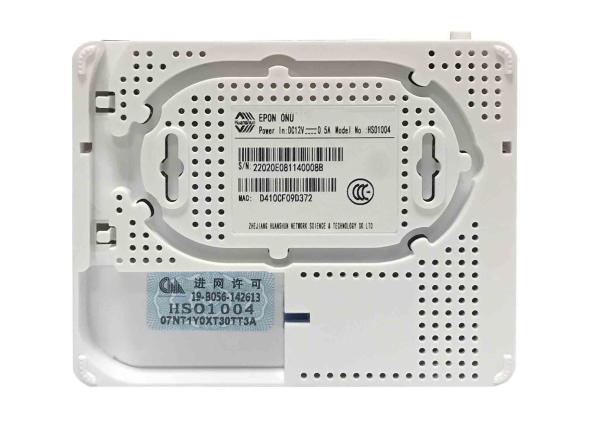

█ ONU has 4 FE Network Ports, fiber access in the device bottom and has fiber storage function, easy to use.

Technical Specifications

Item Unit Performance Index
Optical Characteristics Working Wavelength nm TX1310,RX1490
Optical Transmit Power dBm -1～+4
Optical Receiving Sensitivity dBm ≤ -27
Optical Adapter / SC/UPC
Ports User Ethernet Ports pcs 4FE (10/100Mbps

Others

 Power Supply/Consumption V/W External Power Adapter AV90～255V→DC12(1A or 0.5A)/5
Working/Storage Temperature ℃ -25～55/ -40～75(Humidity8～80%)
Size mm 130×60×22
Operative Standards / National Information Department EPON Interworking Agreement

Application

HSO1004 FTTH ONU / EPON ONU TX1310 / RX1490 nm Working Wavelength 100Mbps

Order Info

Product Name Model Functional Description
EPON ONU HSO1004 EPON 4FE ONU, PON port access, and with fiber storage setting; external 90~255V-12V 1A Power Adapter
