Description

Summary

Huanshun HSGS10076D series Optical Receiver is specially designed for the FTTH application of the CATV network. Compact Structure, Good Appearance Convenient Application. Even under the bandwidth up to 1000Mhz, it can also provide a Stable Output Level and Excellent Performance Indexes, which has the wide range of optical power working range.

This series of Optical Receiver use Ultra Low Optical Power Receiving Technology, all Gallium Arsenide Amplify, Optical Control AGC function, the Output Level of RF is stable when the optical receiving power is -15 to -5dBm.

Features

█ Ultra Low -18dBm Optical Power Receiving MER>28dB, 1000MHz Working Wavelength;

█ 1545~1565nm filter type receiving, applied to 1 fiber 3 wave optical network;

█ Stable and Reliable AGC Control Function, -15~-5dBm/RF76dBuv Constant Output;

█ Perfect Surge Suppression Circuit, Improving Lightning Protection & Surge Shock Prevention Ability;

█ Power Supply, Optical Power Working Condition LED panel display;

█ Low Power designed, Device Total Power Consumption less than 2.0W;

█ Optional SNMP Network Management Function, to achieve Remote Network Management and Local Monitoring;

█ Main Device's Performance pass National Broadcast Inspection&Testing, and obtain the National CATV Admission Certificates;

█ Whole Device's Performance is detected by EMC and Safety Performance Inspection, certified by National Mandatory Product (CCC).

Technical Specifications

Items Unit Performance Index
Optical Characteristics optical receiving wavelength range nm 1545/1565
response rate A/W ≥0.85
optical receiving power range dBm -2~-18(suggested-9~-12)
optical reflection loss dB ≥50
fiber optic adapter/connector / SC/APC
RF Characteristics bandwidth/unevenness MHz/dB 47~1000/≤±1
output level dBuv 76±1(-15~-5dBm)
reflection loss dB ≥14(characteristic impedance75Ω)
RF output port / metric or british system(1-way output)
MER(closed equilibrium) dB ≥25(64QAM)≥31(256QAM) -12dBm receive, optical link 94 digital channels
MER(open equilibrium) dB ≥32(64QAM)≥34(256QAM)
BER / ≤1×10-4 measure at least 100bits
CNR/CTB/CSO dB ≥44≥58≥58(-9dBm/76dBuv)
Other Index power supply/consumption V/W External AC90~255V→DC5/2
working/storage temperature -30~55/-40~75
working/humidity % 5~80(no condensation)
structure size mm 60×60×20

Applications

In the FTTH Triple Play, Data Signal is output through the PON port of the OLT. The CATV Signal is output through 1550 Optical Transmitter, and then passes through an EYDFA Optical Amplifier with the Internal Integrated Splitter, Optical Amplifier, and Combiner Devices, each port output of one fiber with Three Wave Optical Signals, and then though the Optical Distribution Frame(ODF) to user terminal receipt, If receiving Pure CATV Optical Signal, apply the HSGS10076D Optical Receiver with 1550nm Filter.

Please see the following diagram in details:

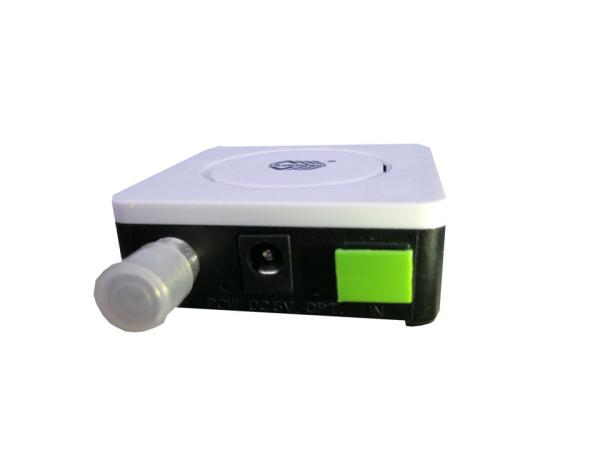

HSGS10076D FTTH Equipment Filter Single Output , Ftth Network 1545/1565 nm

Order Info.

Product Name Model Functional Description

FTTH optical receiver

(Filter type single output)

HSGS10076D 1540~1565nm reception,-5~-15dBm/RF 76dBuv Constant Output,External 90~255V 5V 0.5A Power Adapter
