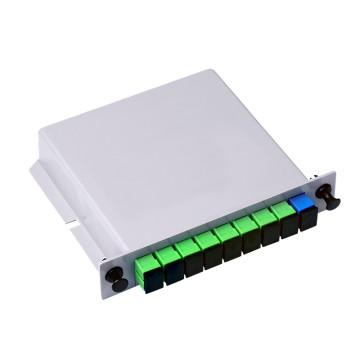

Insert Type Fiber Optic Coupler Splitter HSGFL-PLC-1*8SA-C
Insert Type Fiber Optic Coupler Splitter HSGFL-PLC-1*8SA-C
Insert Type Fiber Optic Coupler Splitter HSGFL-PLC-1*8SA-C
Insert Type Fiber Optic Coupler Splitter HSGFL-PLC-1*8SA-C
Specifications
Brand Name :
HUANSHUN
Model Number :
HSGFL-PLC-1*8SA-C
Place of Origin :
CHINA
Certification :
China Radio and Television access Card
MOQ :
20pcs
Model :
HSGFL-PLC-1*8SA-C
Optical Ratio :
1x4
Type :
Taper or PLC
Insert Loss(dB) :
7.4
Functional Description :
1 input 8,16,32
Product Name :
Insert Type Optical Splitter
Price :
Negotiable
Packaging Details :
safety packing
Delivery Time :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Description

Summary

Optical splitter, also known as optical coupler, is one of the important passive components in fiber optic connections. It is a fiber-optic tandem device with multiple inputs and multiple outputs. The optical splitter can be divided into two types: the molten taper type (LZ) and the plane waveguide type (PLC type) according to the principle of splitting light. However, since the planar waveguide type can only be fabricated into 2 n-th power optical splitters, the FTTH cannot be satisfied. The specific needs, however, the combination of the tapered type and the planar waveguide type can be used to fabricate optical splitters of various specifications.

Technical Specifications

Optical Ratio Type Insert Loss(dB) Optical Ratio Type Insert Loss(dB) Optical Ratio Type Insert Loss(dB)
1x2 Taper or PLC 3.9 1x13 Taper+PLC 13.5 1x24 Taper+PLC 16.7
1x3 Taper 5.7 1x14 Taper+PLC 13.6 1x25 Taper+PLC 16.9
1x4 Taper or PLC 7.4 1x15 Taper+PLC 13.7 1x26 Taper+PLC 17.1
1x5 Taper 8.1 1x16 PLC 13.9 1x27 Taper+PLC 17.3
1x6 Taper 9 1x17 Taper+PLC 14.9 1x28 Taper+PLC 17.5
1x7 Taper 9.7 1x18 Taper+PLC 15.2 1x29 Taper+PLC 17.7
1x8 Taper or PLC 10.9 1x19 Taper+PLC 15.5 1x30 Taper+PLC 17.8
1x9 Taper+PLC 12 1x20 Taper+PLC 15.7 1x31 Taper+PLC 18
1x10 Taper+PLC 12.3 1x21 Taper+PLC 16 1x32 PLC 17.4
1x11 Taper+PLC 12.8 1x22 Taper+PLC 16.4 1x64 PLC 21
1x12 Taper+PLC 13.2 1x23 Taper+PLC 16.6 above indexes are all no include patch cord loss

Order Info.

Product Name Model Functional Description
Insert Type Optical Splitter HSGFL-PLC-1*8SA-C Insert type structure, 1 input 8,16,32,64 output, PLC combination; optical adapter configuration according to requirements, SA: SC/APC, SU: SC/UPC.
HSGFL-PLC-1*16SA-C
HSGFL-PLC-1*32SA-C
HSGFL-PLC-1*64SA-C
Tray Type Optical Splitter HSGFL-PLC-1*16SU-T Tray type structure, 1 in 16 out, 2 in 1 in 16 and 4 in 1 in 16, PLC combination; optical adapter is configured as required, SA: SC/APC, SU: SC/UPC.
HSGFL-PLC-2*16SU-T
HSGFL-PLC-4*16SU-T
