Indoor High Power Optical Amplifier Double Cladding -3～+10/+3dBm

High Power Optical Amplifier Summary

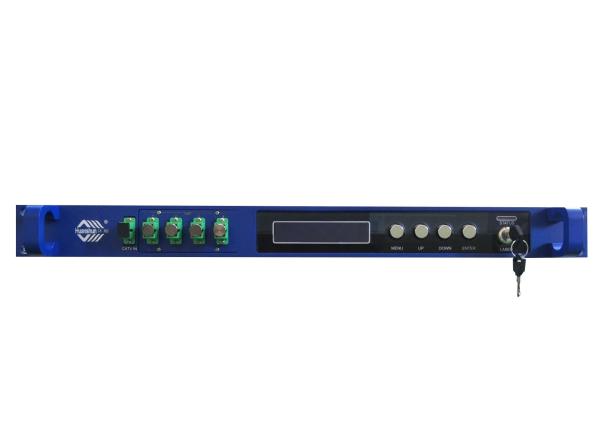

High Power Optical Amplifier adopt Whole-Aluminum Box structure, Surface with Oxidation Wiredrawing finishing process; Our Pump Source parts are manufactured by World Leading Semiconductor Company: JDSU who supply us with Multi-Mode High Power Pump Lasers, Double-Clad Synthesizers are supplied by the United States OFS company. The EYDFA device is equipped with Optical Power Output Stabilization Circuit and Laser Thermoelectric Cooler to ensure stable work. Microprocessor software do monitor the Working Status of the laser, the Working Parameters are displayed by the Digital Panel (LCD). Once the Working Parameters of the laser deviate from the Software Setting Allowable Range, Microprocessor will automatically turn off the Laser Power, Red Light flashes alert, The Digital Panel indicates the cause of the failure.

High Power Optical Amplifier Features

  1. HIGH RELIABILITY: Indoor EYDFA use a Whole-Aluminum 19" Standard Box, can be directly mounted on the 19" Cabinet.
  2. INTUITION: The Pump Laser is the most valuable device in the whole machine. A Microprocessor is set up to monitor the Working State of the Pump Laser, and the Working Parameters are displayed by the LCD Panel.
  3. NETWORK MANAGEMENT SYSTEM: Supporting SNMP Network Management Protocol, Telnet, HUANSHUN FTTH Integrated Network Management System.

High Power Optical Amplifier Performance Parameters

Items Units Performance Parameters
Optical Working Wavelength nm 1535～1565

Input Optical Power Range

Nominal Input Optical Power

 dBm -3～+10/+3
MAX/MIN Warning Values dBm +10/+2～-10 front panel optical alarm, ≤-10 shut down
Noise Factor dB ≤5.0 (0 dBm,@1550nm)

Output Optical Power Stability

Gain Flatness

 dB ＜±0.5/＜±0.3

Polarization Sensitivity

Polarization Mode Dispersion

 dB/Ps ＜0.2/＜0.5

Input/Output

End Pump Leakage Power

 dB ≤-30/≤-30
Optical Input and Output Reflection Loss dB ＞45 SC/APC (Stepped End-Face)
Rated Output Power dBm ≥Nominal Value(Details Refer to Specification Descriptions )
CNR/CTB/CSO dB ≥48/≥63/≥63(Notes 1)

Notes:

1.The Optical Link Indexes are measured by Measuring Optical Transmitter and Optical Receiver Combined Testing Results.

2.Above Main Performance Indexes conform to the Technical Requirements and Measurement Methods of GY/T 184-2002 CATV Analog Optical Fiber Amplifier.

Order Info.

Product Name Model Functional Description
EYDFA YGF150418 19’’ 1U standard cabinet, -5～+10dBm input, 4ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB)
YGF150419
YGF150420
YGF150421
YGF150422
YGF150423
YGF150424
Optical Switch Optional model no. suffix+K pick one of two by optical path selection, optical switching loss ≤1dB, switching response ≤30ms
