Outdoor CATV Fiber Optic Amplifier / 8 Output Booster Optical Amplifier
Outdoor CATV Fiber Optic Amplifier / 8 Output Booster Optical Amplifier
Specifications
Brand Name :
HUANSHUN
Model Number :
HSGF100Y-08XX
Certification :
China Radio and Television access Card
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Supply Ability :
500 sets per month
Delivery Time :
Negotiable
Packaging Details :
safety packing
Name :
Fiber Optic Amplifier
Optical Working Wavelength :
1535～1565nm
Input Optical Power Range Nominal Input Optical Power :
-3～+10/+3dBm
MAX/MIN Warning Values :
+10/+2～-10 front panel optical alarm, ≤-10 shut down dBm
Input/Output End Pump Leakage Power :
≤-30/≤-30dB
Polarization Sensitivity Polarization Mode Dispersion :
＜0.2/＜0.5dB/Ps
Description

Outdoor CATV Fiber Optic Amplifier / 8 Output Booster Optical Amplifier​

Fiber Optic Amplifier Summary

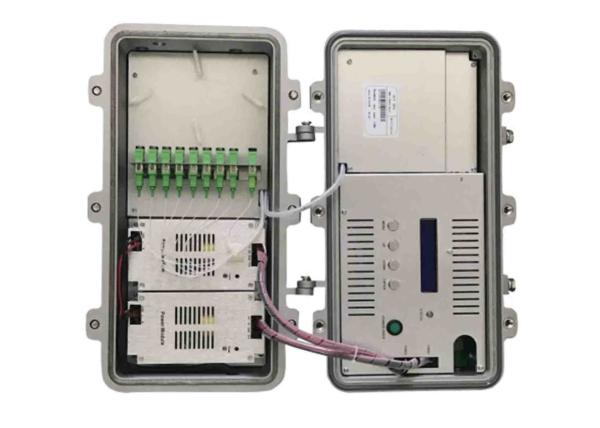

Fiber Optic Amplifier adopt Aluminum Die-Casting Waterproof Box structure, Process of Spray or Baking Paint. Surface with Oxidation Wiredrawing finishing process; Our Pump Source parts are manufactured by World Leading Semiconductor Company: JDSU who supply us with Multi-Mode High Power Pump Lasers, Double-Clad Synthesizers are supplied by the United States OFS company. The EYDFA device is equipped with Optical Power Output Stabilization Circuit and Laser Thermoelectric Cooler to ensure stable work. Microprocessor software do monitor the Working Status of the laser, the Working Parameters are displayed by the Digital Panel (LCD). Once the Working Parameters of the laser deviate from the Software Setting Allowable Range, Microprocessor will automatically turn off the Laser Power, Red Light flashes alert, The Digital Panel indicates the cause of the failure.

Fiber Optic Amplifier Features

  1. EXCELLENT QUALITY: Multi-Way High Power Pump Laser, Power is through Optimization & Balance Technology, Minimize the Noise Factor of EYDFA & comparable with general EDFA, which can make the system excellent CNR;
  2. MULTI-OUTPUTS: The Maximum Synthetic Output Power is up to 1.6W~6W, Multi-Ports Output can be matched according to the user demand. Outdoor EYDFA structure size are 8×18~23dBm;
  3. HIGH RELIABILITY: Outdoor EYDFA use a Fully Sealed Waterproof Box, Built-in High Performance Anti Lightning Switch Power Supply, It can be working well under AC165~265V City Electricity or AC35~80V Feed.

Fiber Optic Amplifier Performance Parameters

Items Units Performance Parameters
Optical Working Wavelength nm 1535～1565

Input Optical Power Range

Nominal Input Optical Power

 dBm -3～+10/+3
MAX/MIN Warning Values dBm +10/+2～-10 front panel optical alarm, ≤-10 shut down
Noise Factor dB ≤5.0 (0 dBm,@1550nm)

Output Optical Power Stability

Gain Flatness

 dB ＜±0.5/＜±0.3

Polarization Sensitivity

Polarization Mode Dispersion

 dB/Ps ＜0.2/＜0.5

Input/Output

End Pump Leakage Power

 dB ≤-30/≤-30
Optical Input and Output Reflection Loss dB ＞45 SC/APC (Stepped End-Face)
Rated Output Power dBm ≥Nominal Value(Details Refer to Specification Descriptions )
CNR/CTB/CSO dB ≥48/≥63/≥63(Notes 1)
Power Supply/Power Voltage V/W Outdoor EYDFA: AC165～265 City Electricity or AC35～75Feed/25
Working/Storage Temperature ℃ -20～50/-30～70(Relative Temperature 5～90%)
Box Size mm Outdoor EYDFA: 88×482.6×387

Network

Management Interface

 / RJ45(Follow the Network Management National Standards, and Support WEB Browser)

Notes:

1.The Optical Link Indexes are measured by Measuring Optical Transmitter and Optical Receiver Combined Testing Results.

2.Above Main Performance Indexes conform to the Technical Requirements and Measurement Methods of GY/T 184-2002 CATV Analog Optical Fiber Amplifier.

Order Info.

Product Name Model Functional Description
Outdoor EYDFA HSGF100Y-0818-SA outdoor waterproof structure, -5～+10dBm input, 8ways nominal specification(18, 19, 20, 21, 22dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); dual power supply AC90~255V or AC35~75V feed, RJ45 standard network management system(support SNMP, WEB)
HSGF100Y-0819-SA
HSGF100Y-0820-SA
HSGF100Y-0821-SA
HSGF100Y-0822-SA
