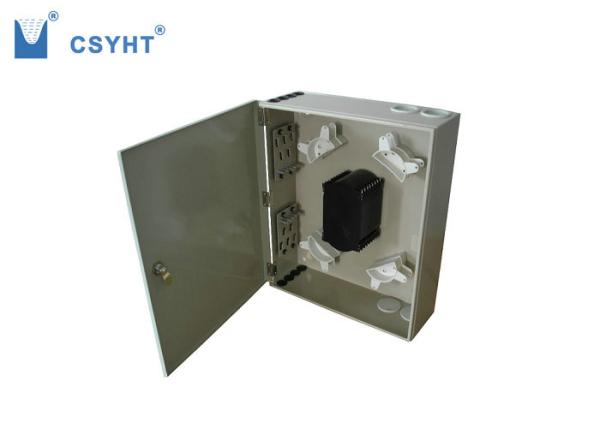

Indoor wall mounted fiber optic distribution box 96FO made by cold roll steel
Indoor wall mounted fiber optic distribution box 96FO made by cold roll steel
Specifications
Brand Name :
CSYHT
Model Number :
ODF-IG96
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100pcs per day
Delivery Time :
about 6 days
Packaging Details :
carton
Dimension :
380x450x129mm
Material :
Cold roll steel
Capacity :
96 fibers
Adapter port :
No
Application :
Indoor wall mounted
Feature :
One door with lock
Price :
Negotiable
Description

Indoor wall mounted fiber optic distribution box 96FO made by cold roll steel

Description:

Fiber optic distribution box ODF-IG96 is designed for indoor wall-mounted using, cold-roll steel material, no adapter plate, only splice trays for fiber splicing and management.

Features:

Cold-roll steel, electrostatic painting

ABS plastic tray inside, 12cores per tray

Only for cable splicing, no plate for adapter installation

Cable entry ports suitable for single fiber, bundle & ribbon fiber cables

Reasonable design ensures the cables are in good order

Wall mouted type, indoor using; pole mounted available

With lock on front door

12, 24, 48, 96 cores optional

Application:

Mainly used for cable inlet and fixing; fiber splicing and protecting; connection and use management between wiring closets and equipments.

Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect. System projects.

Parameters:

Operating temperature: -5～+40℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure:70～-106Kpa

Standard working wavelength: 850nm, 1310nm, 1550nm

Specification:

Model Dimension Material Adapter port Splicing capacity Application
ODF-IG96 380x450x129mm cold roll steel / 96 fibers Indoor wall mounted

Accessory:

Indoor wall mounted fiber optic distribution box 96FO made by cold roll steel
