Metal wall munted fiber optic distribution box 24FO for outdoor using
Metal wall munted fiber optic distribution box 24FO for outdoor using
Specifications
Brand Name :
CSYHT
Model Number :
ODF-OW24-A
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300pcs per day
Delivery Time :
about 5 days
Packaging Details :
carton
Material :
Cold roll steel
Dimension :
450x380x90mm
Adapter port :
24 SC, LC, FC, ST adapters
Feature :
One door with lock
Capacity :
24 fibers
Application :
Outdoor wall mounted or pole mounted
Price :
Negotiable
Description

Metal wall munted fiber optic distribution box 24FO for outdoor using

Description:

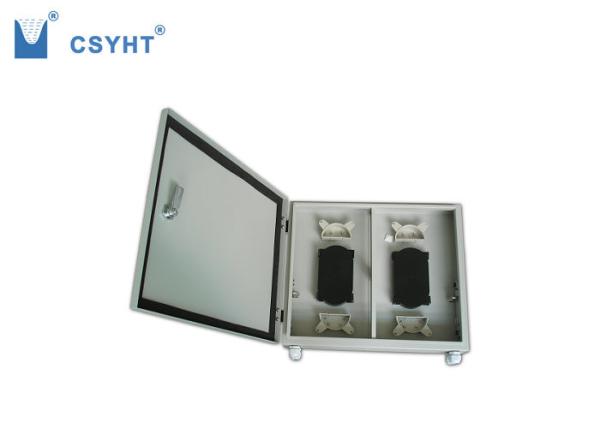

ODF-OW24A is an outdoor wall mounted fiber optic distribution box with 24 port that used for fiber optic cable splicing, distribution, connection and managements. It is made by cold roll steel with powder electrostatic spraying.

Features:

With plastic plates can manage both single fiber and ribbon & bundle fiber cables

FC, LC, SC, ST output interfaces optional

Large working space to integrate the pigtail, cables and adapters

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation

Special design ensures the excess fiber cords and pigtails in good order

Inner components as follows:

Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers

Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails

The brim of the box is sealed.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN

CATV

Specification:

Model Capacity Dimension(cm) Weight(Kg)
ODF-OW24A 24 46.5x41x11 About 7
