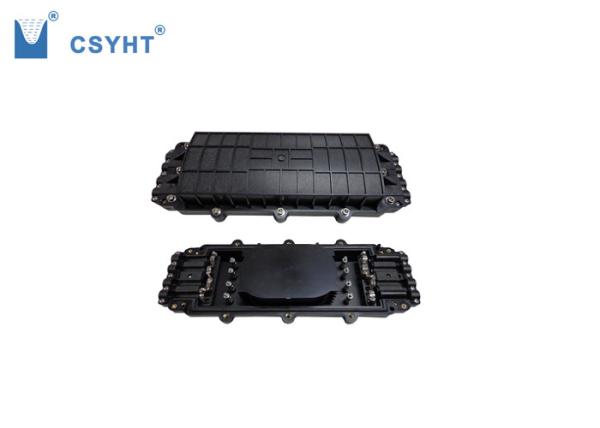

Horizontal Type Fiber Optic Closure Outdoor Aerial Hanged For 12 - 144 Fiber Splicing
Horizontal Type Fiber Optic Closure Outdoor Aerial Hanged For 12 - 144 Fiber Splicing
Specifications
Brand Name :
CSYHT
Model Number :
CH009
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
T/T, D/A, D/P, L/C
Supply Ability :
300pcs per day
Delivery Time :
about 5 day
Packaging Details :
carton
Size :
466.5x179.8x120.6mm
Material :
ABS
Cable port :
4 in 4 out
Splice tray :
6pcs
Max. capacity :
144 fibers
Application :
Outdoor aerial hanged
Price :
Negotiable
Description

4 in 4 out horizontal type fiber optic closure for 12 , 24 , 48 , 96 , 144 fiber splicing

Description:

CH009 has 8 fiber cable in-out round ports for the diameter Ф8-Ф16mm cable entry. It is widely applied to the splicing and distributing variable optical cables. It is made of high-quality ABS and with the mechanical seal structure filled with the seal material. The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing and can be reused without changing sealing material, with silicone rubber insulation tape.

Application: Wall mounted, Aerial hanged

Specification:

Dimension (mm) 466.5x179.5x120.6
Weight (Kg) About 2.8
Cable diameter(mm) Ф8-Ф16
Cable entry ports 4 in 4 out
Max. Capacity of fiber splice tray

6pcs

(each tray 12slots, each slot for 2 fibers; 24fibers)
Max. Capacity 144fibers
Sealing structure Silicon gum material or sticky cincture

Accessories:

Splice protector sleeve

Silicon gum material

Sticky cincture

Cable ties

Sealing washer

Allen wrench

Insulated rubber belt
