High Intensity Optical Fiber Tray 12 Core Black / White Accept Redundant Bare Fiber
High Intensity Optical Fiber Tray 12 Core Black / White Accept Redundant Bare Fiber
High Intensity Optical Fiber Tray 12 Core Black / White Accept Redundant Bare Fiber
High Intensity Optical Fiber Tray 12 Core Black / White Accept Redundant Bare Fiber
Specifications
Brand Name :
CSYHT
Model Number :
OST-005
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000pcs per day
Delivery Time :
about 6 days
Packaging Details :
carton
Material :
ABS plastic
Size :
158x95.1x15.3mm
Slot :
12 slots
Capacity :
max. 24 fibers
Feature :
with metal plug for closing cover
Color :
black or white
Price :
Negotiable
Description

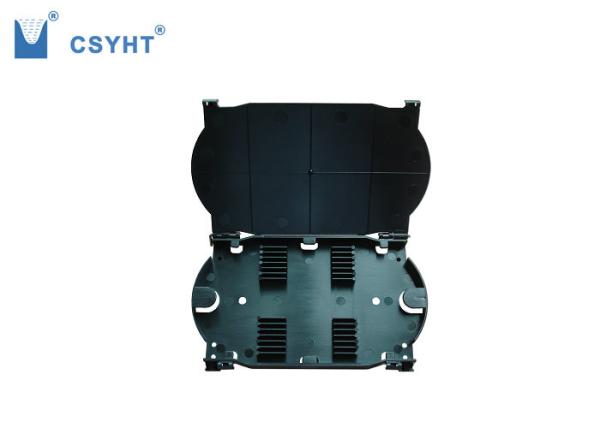

12 core fiber optic tray for fiber splicing and storage made by ABS plastic

Description:

OST-005, there are 12pcs sleeve holes in splice tray,it can splice 12cores, also can splice 24cores max when put two sleeves in each hole. The cover and base fixed by metal pin , And the trays can be stackable. The inner splice tray cable management is reasonable, the fiber bending radius are over 30mm.

Features:

1. Heat shrink splice holder 12pcs.

2. ABS material used ensures the body strong and light.
3. Protect and manage heat shrink style spliced fibers.
4. Use for single-mode or multimode fiber.
5. Durable injection-molded plastic trays and covers.
6. Longer bending radius for fiber, Easy operation of fiber/pigtails.
7. Suitable for ribbon or non-ribbon optical fiber cable

Order information:

Model Size L*W*H Net Weight(g) Remark
Splice tray OST-005B black 158*95.1*15.3mm 65g Black(1 base + 1 cover)
Splice tray OST-005W white 158*95.1*15.3mm 65g White(1 base + 1 cover)

Application:

It is used for optic fiber management,storage and fiber optic fusion protection,easy for installation.

It is mainly used in rack mount or wall mount terminal box,splice closure for cable management.
