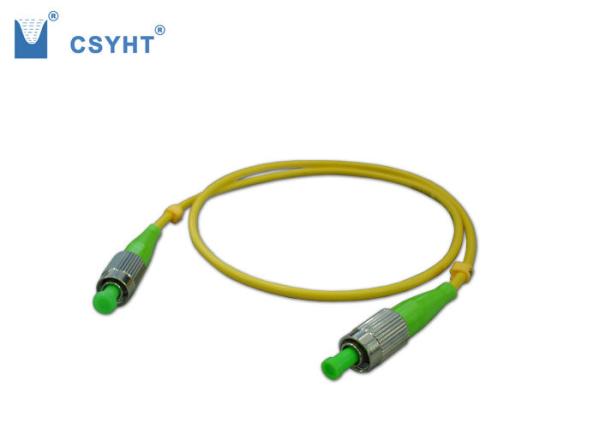

FC SM Fiber Optic Jumper Cables Low Insertion Loss And Back Reflection Loss
FC SM Fiber Optic Jumper Cables Low Insertion Loss And Back Reflection Loss
FC SM Fiber Optic Jumper Cables Low Insertion Loss And Back Reflection Loss
FC SM Fiber Optic Jumper Cables Low Insertion Loss And Back Reflection Loss
Specifications
Brand Name :
CSYHT
Model Number :
FC SM SX
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500pcs per day
Delivery Time :
6 days
Packaging Details :
carton
Connector type :
FC
Polishing type :
UPC, APC
Fiber type :
G652, G657A, G655
Cable diamter :
3.0mm
Cable color :
yellow
Cable length :
1M, 2M, 3M, 5M, ...
Price :
Negotiable
Description

FC SM fiber optic jumper simplex SM fiber optic patch cord G652 G657A ​


FC fiber optic jumper is a fiber optic cable with FC connector at both end. It meet the signal to be connect from one equipment to other equipment rapily and conveniently. It can be single mode and multimode. It is used to attach one device to another for signal rounting.

Application:

Telecommunications

CATV, LAN, MAN, WAN, Test &Measurement

Military industry

Medical

Features:

Low insertion loss and back reflection loss

Ferrule end surface pre-domed

Excellent mechanical endurance

Good in repeatability

Good in exchange

Specification:

Parameter Unit Specification

Durability

 times ＞1000
Insertion loss dB ≤0.3
Return loss dB ≥50
Mechanical endurance dB ≤0.2
Exchangeability dB ≤0.2
Vibration dB ≤0.2
Operating temperature ℃ ﹣40 ～﹢75
Storage temperature ℃ ﹣45 ～﹢85
Cable diameter mm 0.9, 2.0, 3.0
