Duplex Fiber Optic Patch Cord , FC UPC SM FC APC Patch Cord Good Repeatability
Duplex Fiber Optic Patch Cord , FC UPC SM FC APC Patch Cord Good Repeatability
Duplex Fiber Optic Patch Cord , FC UPC SM FC APC Patch Cord Good Repeatability
Duplex Fiber Optic Patch Cord , FC UPC SM FC APC Patch Cord Good Repeatability
Specifications
Brand Name :
CSYHT
Model Number :
FC
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
5000pcs per day
Delivery Time :
about 3 days
Packaging Details :
carton
Type :
FC
Polishing :
UPC, APC
Fiber type :
Single mode, multimode
Cable core :
duplex
Cable color :
yellow
Cable jacket :
PVC, LSZH
Price :
Negotiable
Description

FC APC , FC UPC SM fiber optic patch cord duplex fiber optic jumper

FC fiber optic cable is available in both single mode and multimode versions.

Both single mode and multimode versions FC fiber optic patch cords come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end.

These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Application:

Telecommunications

CATV, LAN, MAN, WAN, Test &Measurement

Military industry

Medical

Features:

High return loss

Low insertion loss

Ferrule end surface pre-domed

Excellent mechanical endurance

Good in repeatability

Good in exchange

Specification:

Parameter Unit Standard & Requirement
PC(SM) UPC(SM) APC(SM) PC(MM)
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥35
Mechanical Endurance (500T) dB ≤0.2
Exchangeability dB ≤0.2
Durability Time ＞1000
Vibration dB ≤0.2
Operating Temperature ℃ ﹣40 ～﹢75
Storage Temperature ℃ ﹣45 ～﹢85
Cable Diameter mm Ф3.0, Ф2.0, Ф0.9

Pictures:

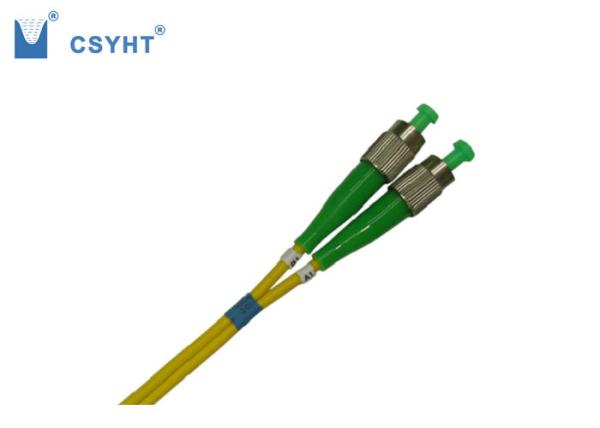

Duplex Fiber Optic Patch Cord , FC UPC SM FC APC Patch Cord Good Repeatability

FC/UPC-FC/UPC MM Simplex patch cord
