24 , 48 , 96 , 120 fiber FTTH box indoor wall mounted plastic type
24 , 48 , 96 , 120 fiber FTTH box indoor wall mounted plastic type
24 , 48 , 96 , 120 fiber FTTH box indoor wall mounted plastic type
24 , 48 , 96 , 120 fiber FTTH box indoor wall mounted plastic type
Specifications
Brand Name :
CSYHT
Model Number :
OTB-E205
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300pcs per day
Delivery Time :
about 5 days
Packaging Details :
carton
Material :
ABS plastic
Dimension :
265.1x299.2x95.4mm
Capacity :
Max. 120 fibers
Cable port :
6 ports
Splice tray :
5pcs
Application :
indoor wall mounted
Price :
Negotiable
Description

24 , 48 , 96 , 120 fiber FTTH box indoor wall mounted plastic type

Description:

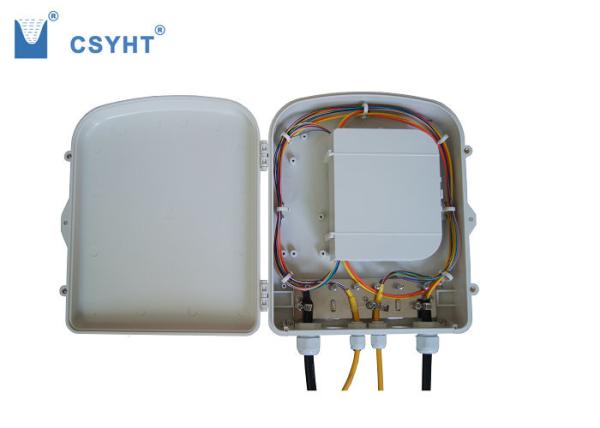

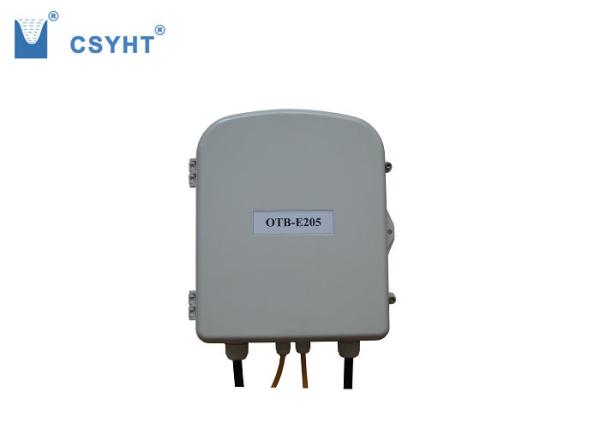

Fiber optic terminal box OTB-E205 is an equipment that mainly used for the optical cable distribution, the fusion of optical cable and pigtail, and the storage and protection of the fiber. It is suitable for the direct and branch connection of the optical fiber cable and protects the optical fiber connector.

Features:

High quality engineering ABS plastic construction

Available able for indoor using.

Hinge structure with two screw lock and one standard lock hole

Flip design for the splice tray, opening angle more than 90℃

Cable ports: 6pcs (2*PG19+2*PG13.5+2*PG9)

Specification:

Type

Dimension

(mm)

 Cable ports Number of the trays Splice capacity of each tray Capacity
OTB-E205 265.1×305.4×95.4 Max. 6 Max. 5

12f (single layer)

24f (double layer)

60fibers;

120fibers(double layers per slot)

Application:

Applicable for the FTTX project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.

The boxes are typically used on walls inside the customer’s premises in the termination part of the access network.
