4 fiber plastic FTTH box for indoor wall mounted in FTTX project
4 fiber plastic FTTH box for indoor wall mounted in FTTX project
4 fiber plastic FTTH box for indoor wall mounted in FTTX project
4 fiber plastic FTTH box for indoor wall mounted in FTTX project
Specifications
Brand Name :
CSYHT
Model Number :
OTB-C04-D
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/P, T/T, D/A
Supply Ability :
500pcs per day
Delivery Time :
about 5 days
Packaging Details :
carton
Material :
ABS plastic
Capacity :
Max. 4 fibers
Size :
90x165.73x24.1mm
Adapter port :
4 SC simplex
Cable port :
2 ports and 4 drop cable port
Application :
indoor wall mounted
Price :
Negotiable
Description

4 fiber plastic FTTH box for indoor wall mounted in FTTX project

Description:

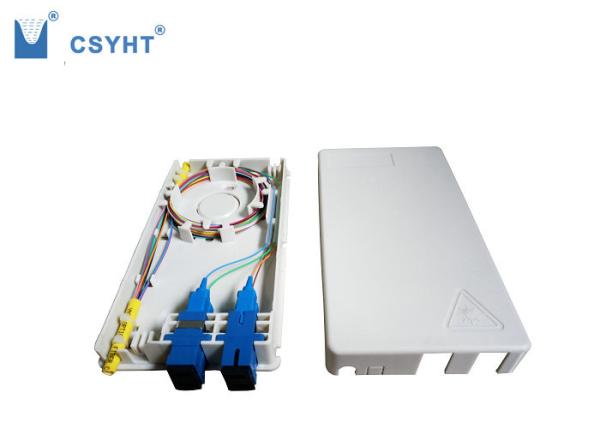

OTB-C04-D is an indoor wall mounted fiber optic terminal box that can load 4pcs SC simplex adapters for fiber splicing and distribution. It is ABS plastic, good design, light weight for FTTH application.

Features:

1. Made of ABS plastic, the cover is inserted into base.

2. Reasonable design, suitable for 4pcs SC simplex adapter, pigtail, and fast connector.

3. 2pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.

4. 4pcs drop cable entry ports, easy use.

5. Can put one 1*4 PLC splitter.

6. Used in the end termination of residential building and villas, to fix and splice with pigtails.

Specification:

Model

Dimension

W*H*D (mm)

 Material Adapter port Splicing capacity Cable port Remark
OTB-C04-D 90x165.73x24.1 ABS plastic 4pcs 4 fibers 2 port & 4 drop cable port

Indoor wall mounted type;

Cable entry without cutting

Packing information:

Model Carton Size Weight Qty/CTN
OTB-C04-D 53.5*51*33.5CM About 20kgs 150pcs per carton

Accessories:

Item Specification Qty
Nylon tie 3*120mm 4pcs
Plastic expansion bolt ￠6mm 3pcs
Round head self-tapping screw C-type 4*20 3pcs
