MachineU > China Products > Electrical Equipment & Supplies > Wiring Accessories > Patch Panel
Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC
Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC
Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC
Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC
Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC
Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC
Specifications
Brand Name :
CSYHT
Model Number :
ODF-RS-240
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
50
Price :
USD9-9.3
Payment Terms :
T/T
Supply Ability :
500 Set/Sets per week
Delivery Time :
7days
Packaging Details :
Carton
splicing capacity :
24fibers
Application :
FTTH FTTB FTTX Network, Telecom, CATV, LAN, DPC ETC.
Color :
Black, grey
Product name :
19'' Sliding/drawer type Patch Panel
Material :
cold roll steel
Dimension :
430*240*44mm
Adapter :
ST, FC, SC, LC, SC/FC/LC/ST
logo :
Customized available
Description

cheap 12-48 core SC/FC/ST/LC rack mount Splicing fiber Optic patch panel Termination Box ODF

Features:

Material: high-quality cold roll steel&the surface is sprayed with electrostatic powder.

Size: 430*240*44mm (W x D x H)

Color : Black or White

Installation:19inch rack mount

Inner structure:It can load 2pcs OST-011 or OST-035 splice trays max. The rear cable input port can fix with 2pcs M20 and 2pcs M25 PG gland

Double layer adapter plate .Customer can choose different adapter port and capacity.

Simple structure and easy operation

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

Dimension:

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

Fiber Arrangement Figure

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

1,Cable 2,Stripped cable 3,splice tray 4,pigtail 5,patch cord

Accessory

Item Name size unit Qty
1 Shrinkable sleeve 45MM*2.6*1.2 pc Same with fibers capacity
2 Cable tie 3mm*120mm/white pc 4
3 PG gland M20 pc 2
4 Plastic Cable ring KL-1/20*20/white pc 4

Package

Carton size(CM) G.W(KG) Qty/ctn
53*30.5*26.5 17 5sets

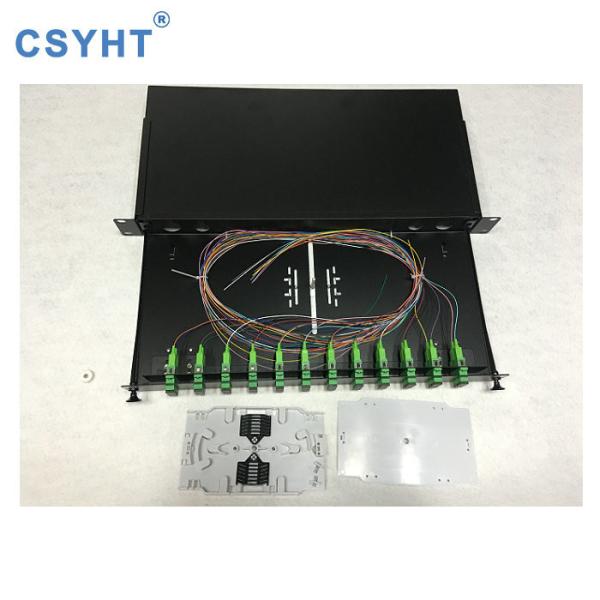

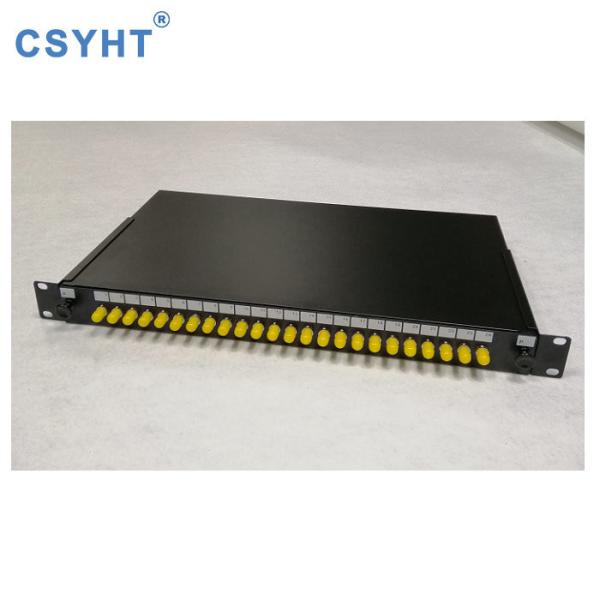

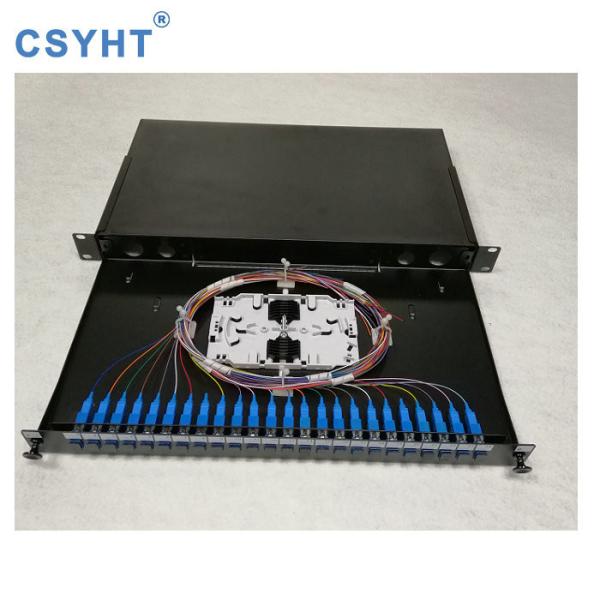

Product image :

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

Rack Mount Splicing Fiber Optic Patch Panel Termination Box 12-48 Core SC/FC/ST/LC

WHY CHOOSE US?
What’s your best price?

Based on the quality of our products and the quantity of your order. We would quote the

best matching price all the time.
Can you provide OEM/ODM service?
Yes, we can. Please let us know your detail requirements
Can you list some of your main customers?
Domestic: China Telecom, China Mobile, China Unicom, Huawei, Fiberhome, ZTE, etc.
Abroad: Furukawa, Fujikura, TOT, Etisalat, STC, Commscope, Verizon, Duratel, Smart, etc.
Why choose YHT to cooperate?

1. Reliable & Experienced communication equipment manufacturer for 16 years.
2. First-class production line and strict quality management system.
3. Professional procedure system and bulk production capacity to guarantee fast delivery.
4. Most competitive price to meet your budget.
5. Professional R&D team to design and innovate new products based on our rich experience.
6. Fast & Effective after sales service.One year warranty(free change if quality problem),

three year maintenance.

7. wide products series like FTTH box,ODF,splice closure,pigtail,patch cord and others fiber optic producsts for choosing
