Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
Specifications
Brand Name :
CSYHT/OEM/ODM
Model Number :
1XN PLC MINI SPLITTER
Certification :
CE RoHS ISO
Place of Origin :
Shenzhen China
MOQ :
10
Price :
3 ~ 45 usd per piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per day
Delivery Time :
10days for 3000pcs
Packaging Details :
240pcs/ctn 55x45x34cm 14kgs
No. of Fiber :
2/4/8/16/32/64
PLC splitter type :
Steel tube mini type PLC splitter
Connector Type :
SC FC LC FT
Fiber Count :
1XN or 2XN
Cable Type :
G657A1 LSZH 0.9mm
Cable Color :
Colorful or white optional
Fiber Lenth :
As request
Application :
Telecomminication FTTX FTTH Fiber Network System
Description

Optics Telecom PLC Splitter Mini Steel Tube 1x2 1x4 1x8 1x16 SC UPC/APC Bare Fiber With Connector
Model Number: 1XN PLC MINI SPLITTER

Product Description:
PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability.
The PLCs devices have 1x4, 1x8, 1x16 and 1x32 standard configurations, as well as customized structures of 2x4, 2x32, and 2x64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement.

Application for PON- FTTX Networks, CATV, Outside Plant Equipments, DWDM and CWDM systems

Features:
(1) Low insertion loss
(2) Various coupling ratio
(3) High return loss and excellent uniformity.
(4) Low Polarization dependent loss
(5) Environmental stable

Specification:

Parameter Unit 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss Max. dB 4.2 7.2 10.5 13.7 17.0 20.6
Channel Uniformity Max. dB 0.6 0.8 1.0 1.6 1.6 2.0
Polarization Dependent Loss Max. dB 0.2 0.3 0.3 0.3 0.3 0.5
Operation Wavelength nm 1260~1650
Return Loss Min. dB 55(Premium Grade) / 50(Standard Grade)
Directivity Min. dB 55
Operation Temperature & Storage Temperature ºC -40~+85
Fiber Type - G657A1
900um Steel tube type PLC splitter Dimension
(H*W*L)mm		 4*7*60 4*12*60 6*20*80 6*40*100

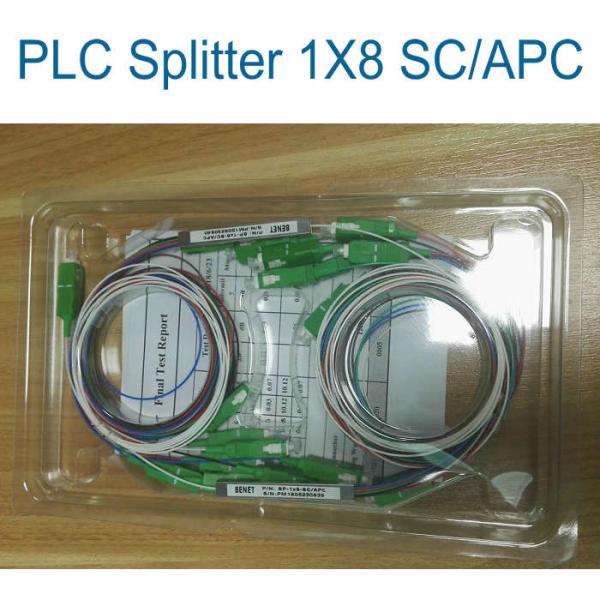

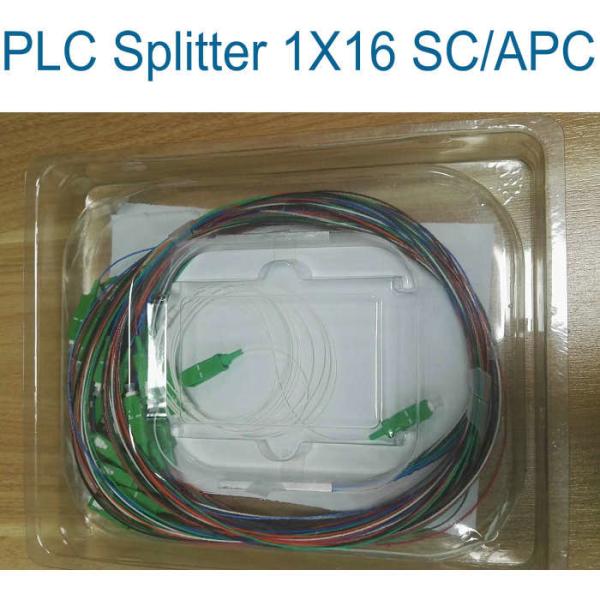

Pictures:

Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber

Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber

Below FTTH Box can load in PLC Mini Splitter:

Telecom PLC Fiber Optic Splitter Mini Steel Tube 1x2 1x16 SC UPC/APC Bare Fiber
