144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
Specifications
Brand Name :
CSYHT / OEM
Model Number :
CV024 Series
Certification :
ISO ROHS CE PONY
Place of Origin :
CHINA
MOQ :
50 Pieces
Price :
USD 10-20 /Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Pieces / Day
Delivery Time :
5-8 workdays
Packaging Details :
Individual Box & Outer Carton or According to client's request
Product Name :
144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder
Feature :
With Large Space At Back Side Of Tray Holder
Application :
For splicing,distributing optical cables and splitting
Material :
High impact PP plastic+UV resistance agent
Dimension :
Φ231*504 mm
Color :
Black
Splicing Capacity :
144 fibers
IP (Ingress Protection) :
IP68
Cable Port :
6 ports; 6+1 ports; 4+1 ports
Splice tray :
6 splice trays with 24FO
Description

144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder

144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder (CV024 Series) is a special dome closure which has a large space at back side of tray holder, it can meet 144FO with 6 splice trays, each splice tray can

Features:

P/N CV024 Usage
Outdoor Usage
Dimensions Φ231*504 mm Color Black
IP Rate IP68 Splice Capacity 144 FO
Splice tray 6 splice trays with 24FO Work Temperature -35℃~70℃
Material High impact PP plastic+UV resistance agent Application
For splicing,distributing optical cables and splitting
Cable Port 4 round & 1 oval ports (Mechanical sealing); 6 round & 1 oval ports (Heat shrinakble sealing); 6 round ports((Heat shrinakble sealing)

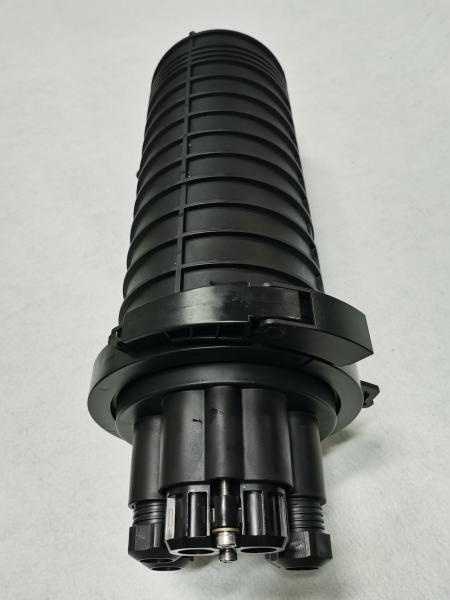

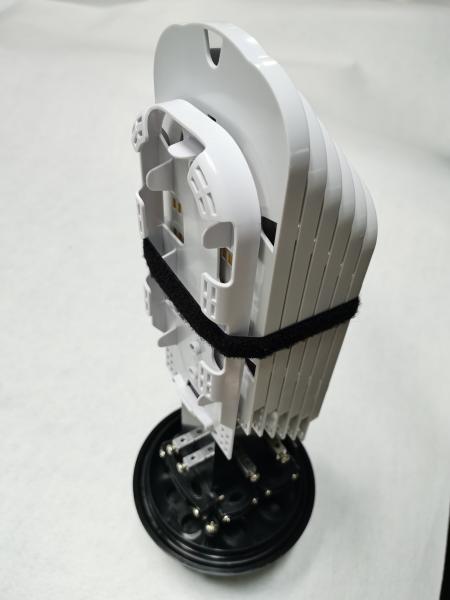

Product Pictures:

144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder

144FO Dome Optical Fiber Cable Joint Closure Large Space At Back Side Of Tray Holder

Model Cable Port & Sealing Method
CV024 6pcs Ø18mm ports(2pcs Ø12mm extra spare parts), Mechanical sealing
CV024A 4pcs Ø25mm round ports+1pc 69 * 40mm oval port, Heat shrinakble sealing
CV024B 6pcs Ø20mm round ports+1pc 62.5 * 33mm oval port, Heat shrinakble sealing

Application:

  • FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Factory Information (more information please view our company website: www.szyht.com.cn):


Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.

v It was established in 2003, and grows up rapidly.

v In 2011, branch factory was established in Huizhou city.

v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.

v In November 2016, factory moved to YHT industry park.

v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.

The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.
