Specifications
Brand Name :
CSYHT
Model Number :
PLC-1X32 SCA
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
10
Price :
USD 12 /pc
Payment Terms :
T/T
Supply Ability :
5000sets per week
Delivery Time :
7 working days
Packaging Details :
carton and pallet
Material :
ABS box
Operation wavelength :
1260nm to 1650nm
Fiber type :
G657A 2.0mm
Capacity :
3U 72 SC simplex adapters
Dimension :
140×115×18 (black module)
Directivity :
55dB
Insertion loss :
4dB(1X2), 7.3dB(1X4) ,10.5dB(1X8),16.9dB(1X32)
Description

We own professional R&D team, we can help customer develop new products, welcome OEM & ODM orders !

PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber
pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal
distribution, with small form factor and superb reliability.
The PLCs devices have 1x4, 1x8, 1x16 and 1x32 standard configurations, as well as customized structures of 2x4,
2x32, and 2x64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability
qualification requirement.
Features:
Low insertion loss
Various coupling ratio
high return loss and excellent uniformity.
Low Polarization dependent loss
Environmental stable
Operation wavelength: 1260nm to 1650nm
Operating Temperature:-40℃ to 85℃
Application:
FTTx systems
Optical LAN, Metro, WAN networks
Passive optical networks
CATV networks
Specification:

Specification:

Table 1 – 1×N PLC optical splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating wavelength (nm) 1260～1650
Fiber type G657A or other request
Insertion Loss (dB) (S/P) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
Uniformity (Max.,dB) 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss(dB) (S/P) 50/55 50/55 50/55 50/55 50/55 50/55
Polarization dependent loss (dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55

Wavelength Dependent Loss

(dB)

 0.3 0.3 0.3 0.5 0.5 0.5
Temperature stability(-40～85 ℃)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage temperature(℃) -40～85

Device package size

(mm) (L×W×H)

 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4

Module Box Dimensions

(mm) (L×W×H)

 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18

Micro Module Size

(mm) (L×W×H)

 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 N/A

Table 2 – 2×N PLC Optical Splitter

Parameter 2×2 2×4 2×8 2×16 2×32 2×64
Operating wavelength (nm) 1260～1650
Fiber type G657A or other request
Insertion Loss (dB)(S/P) 4.2 7.6 11.0 14.5 17.5 21.0/20.5
Uniformity (Max.,dB) 0.8 1.5 1.5 2.0 2.5 2.5
Return loss(dB) (S/P) 50/55 50/55 50/55 50/55 50/55 50/55
Polarization dependent loss (dB) 0.2 0.2 0.3 0.4 0.4 0.5
Directivity (dB) 55 55 55 55 55 55

Wavelength Dependent Loss

(dB)

 0.3 0.5 0.5 0.5 0.5 0.5
Temperature stability (-40～85 ℃)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage temperature (℃) -40～85

Device package size

(mm) (L×W×H)

 40×4×4 50×4×4 50×4×4 50×7×4 60×7×4 70×12×4

Module Box Dimensions

(mm) (L×W×H)

 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18

Micro Module Size

(mm) (L×W×H)

 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 N/A

Note:

1． Specification without fiber optic connectors;

2． Each connector will add loss 0.2dB.

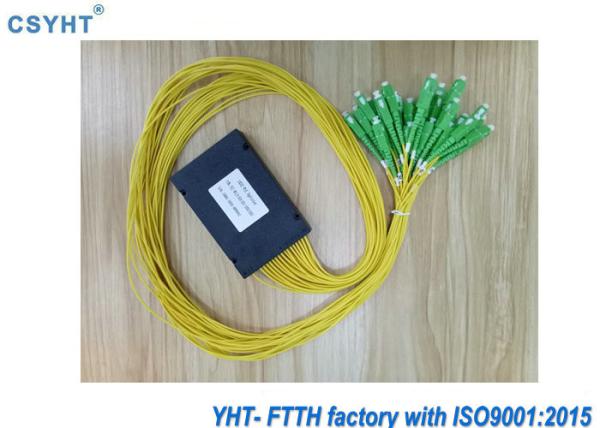

Product Details:

Environmental Stable Fiber Optic Audio Cable Splitter 1X32 SC/APC PLC 55dB Directivity

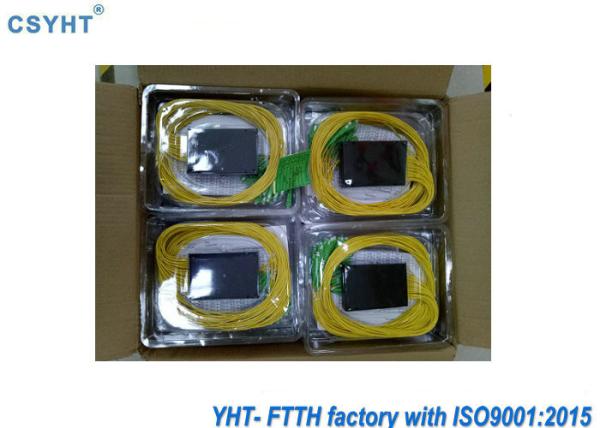

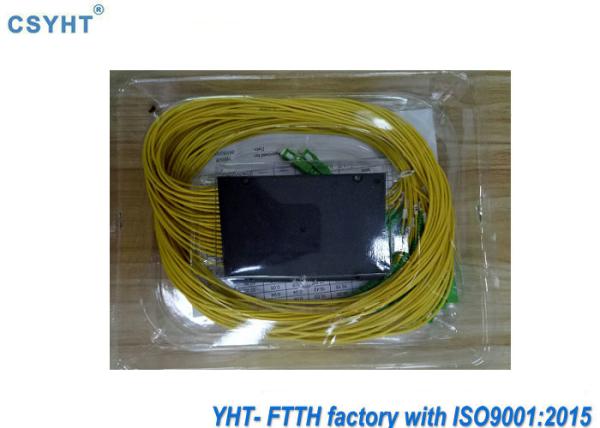

Delivery :



Environmental Stable Fiber Optic Audio Cable Splitter 1X32 SC/APC PLC 55dB Directivity

Environmental Stable Fiber Optic Audio Cable Splitter 1X32 SC/APC PLC 55dB Directivity


FAQ:


Could you provide free sample ?
Yes. We can provide free sample

How long is your warranty ?
1 Year.

Can we visit your factory ?
Yes. Surely welcome your visit .

Are you real factory ? All your products produced by your factory ?
Yes. Sure. Our factory was established in 2003. You can browse our factory video in Youtube:https://www.youtube.com/watch?v=gOzQetGSPfI

What's main products of your factory ?
Our factory mainly produce fiber optic equipments. Such as patch panel , termination box ,spliceclosure,patch cord. Pigtail

Can you provide OEM service?
Yes.we can . welcome you send your OEM specification to us .

How about your lead time ?
Usually we can delivery goods in 1~2 weeks after get your order. We have a good production capacity , We load a 40HQ container products in every week.

What's your standard package ?
We packed by export cartons. For the shipment by sea, we usually packed all cartons by pallets.

What about payment term?
T/T. At first 30% deposit, 70% balance paid before delivery . After have several cooperation,we can talk about credit .

How many pcs of your MOQ ?
Our MOQ is 50pcs for unit products
