FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65
Specifications
Brand Name :
CSYHT
Model Number :
OTB-P046
Certification :
ISO9001:2015
Place of Origin :
china
MOQ :
50
Price :
USD9-12.7
Payment Terms :
T/T, L/C
Supply Ability :
500 Set/Sets per week
Delivery Time :
7days
Packaging Details :
Carton
Material :
abs
Application :
Outdoor mounted or pole mounted
Adapter :
Max. 24pcs SC simplex adapters
Dimension :
245.6*307.53*103.8mm
Ports :
Cable ports: 6 ports for φ6-φ12mm cable
Capacity :
144fibers
Protection grade :
IP65
structure :
Mechanical sealing structure
color :
white or black
Adapter Types Supported :
FC, SC, ST,LC
Description

FDB wall mount ABS FTTH PLC 144 Core IP65 pole mount termination box

FTTH outdoor 144 core fiber optic terminal box PLC splitter box FTTH box

OTB-P046 is a plastic fiber optic terminal box can load 24pcs SC simplex adapters and 6pcs splice trays for max. 144 fiber connection and distribution. It is outdoor wall mounted or pole mounted application.

Features:

Material: ABS plastic + UV

Structure: Mechanical sealing structure

IP standard: IP65

Application: Wall mounted or pole mounted

Cable ports: 6 ports for φ6-φ12mm cable, support cable entry without cutting.

Adapter plate: 24 SC simplex adapter ports

Splice tray Qty: 6pcs splice tray, each tray max. 24 fibers

Capacity: Max. 144 fibers

Specification:

Model Dimension Material Adapter port Splicing capacity Cable port Application
OTB-P046 245.6*307.53*103.8mm ABS+UV 24 SC simplex adapters Max. 144 fibers 6 ports Outdoor wall mounted or pole mounted

Dimension: (mm)

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

Instruction:

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

1--Input / Output cable 2--Stripped out fiber optic cable 3--Fiber storage tray

4--Heat shrinkable protection sleeve 5--Fiber optic splice tray 6--Fiber to the upper tray 7--Fiber to the lower tray

Accessories:

Item Name Specification Qty
1 Heat shrinkable protection sleeve 45x2.6x1.2mm As per using capacity
2 Cable tie 3x120mm, white 6pcs
3 Plastic expansion screw Φ6mm, white 4pcs
4 Countersunk head tapping screw C type 4*30, metal 4pcs
5 Round head tapping screw C type 2*6, metal 48pcs

Optional accessories:

Name Specification Qty
Pole mounted stainless tape 12*620mm 2 pcs

Packing information:

6pcs per carton, 52.5x47.5x33cm

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

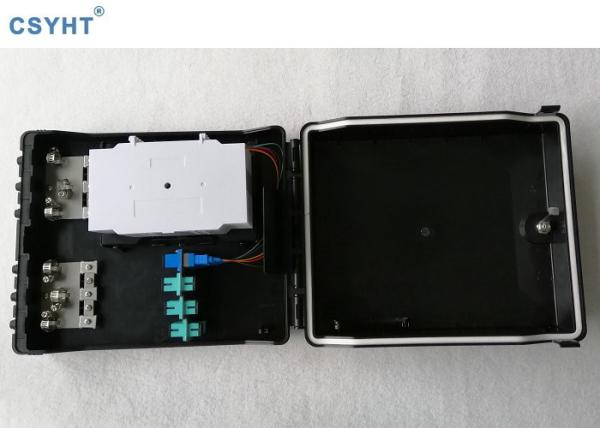

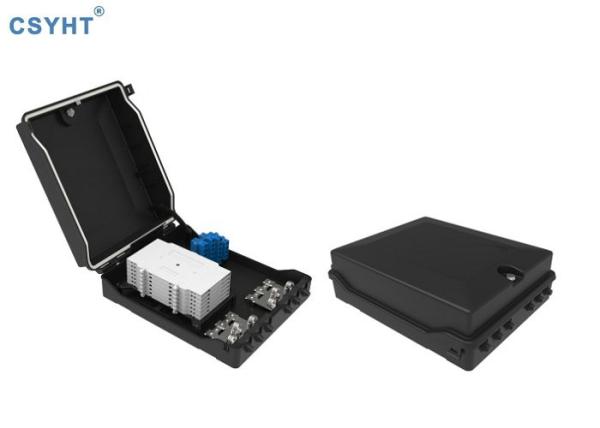

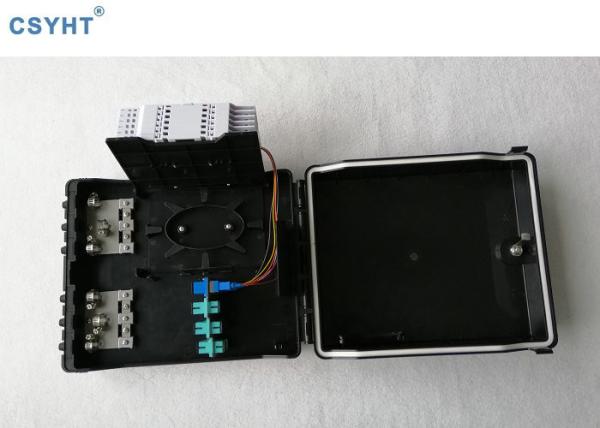

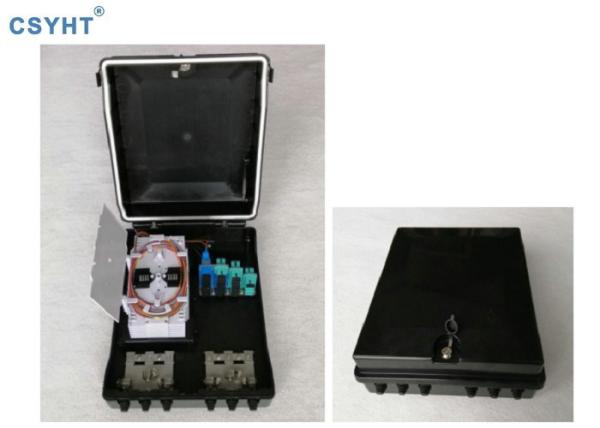

Photos:

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65


YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

FDB ABS FTTH PLC 144core Pole Mount Termination Box IP65

WHY CHOOSE US?
What’s your best price?

Based on the quality of our products and the quantity of your order. We would quote the

best matching price all the time.
Can you provide OEM/ODM service?
Yes, we can. Please let us know your detail requirements
Can you list some of your main customers?
Domestic: China Telecom, China Mobile, China Unicom, Huawei, Fiberhome, ZTE, etc.
Abroad: Furukawa, Fujikura, TOT, Etisalat, STC, Commscope, Verizon, Duratel, Smart, etc.
Why choose YHT to cooperate?

1. Reliable & Experienced communication equipment manufacturer for 16 years.
2. First-class production line and strict quality management system.
3. Professional procedure system and bulk production capacity to guarantee fast delivery.
4. Most competitive price to meet your budget.
5. Professional R&D team to design and innovate new products based on our rich experience.
6. Fast & Effective after sales service.One year warranty(free change if quality problem),

three year maintenance.

7.wide products series like FTTH box,ODF,splice closure,pigtail,patch cord and others fiber optic producsts for choosing
