48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray
48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray
48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray
48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray
Specifications
Brand Name :
CSYHT / OEM
Model Number :
CV010
Certification :
ISO ROHS CE PONY
Place of Origin :
CHINA
MOQ :
200 Pieces
Price :
USD 5-7.5 /Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Pieces / Day
Delivery Time :
5-8 workdays
Packaging Details :
Individual Box & Outer Carton or According to client's request
Product Name :
48 Cores Dome Mini Fiber Optic Enclosure Box With 4 Splitter Tray
Feature :
Mini Type
Application :
For splicing,distributing optical cables and splitting
Material :
High impact PP plastic+UV resistance agent
Dimension :
Φ146*300.5 mm
Color :
Black
Splicing Capacity :
48 fibers
IP (Ingress Protection) :
IP68
Cable Port :
3 round ports + 1 oval port
Splice tray :
4 splice trays with 12FO
Description

48 Cores Dome Mini Fiber Optic Enclosure Box With 4 Splitter Tray

48 Cores Dome Mini Fiber Optic Enclosure Box With 4 Splitter Tray (CV010) is one of our hot-selling dome closure that is used for fiber optic cable splicing and protection. it is made of high impact resistance PP with UV material, small size and light weight make it will easy to install on pole or wall.

Features:

P/N CV010 Usage
Outdoor Usage
Dimensions Φ146*300.5 mm Feature Small size and light weight
Sealing Type Heat Shrikable sealing Splice Capacity 48 FO
Splice tray 4 splice trays with 12FO Work Temperature -35℃~70℃
Material High impact PP plastic+UV resistance agent Application
For splicing,distributing optical cables and splitting
Cable Port 4cable ports, 3pcs(φ18mm),1pcs ellipse cable port( cable no cutting)

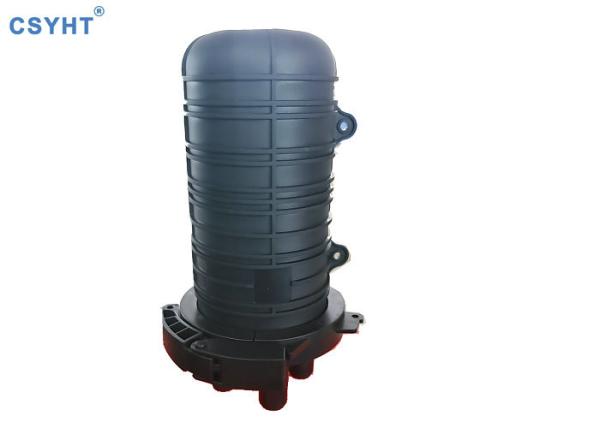

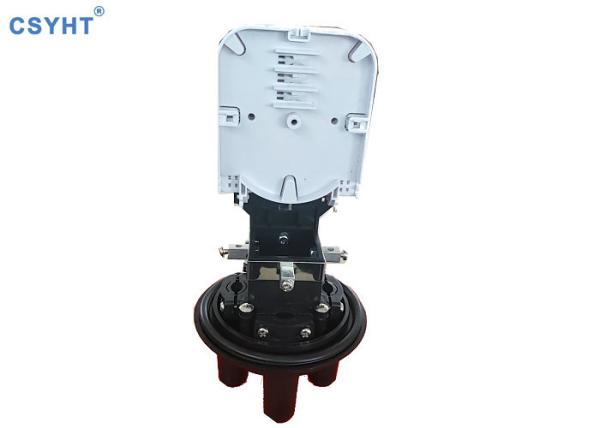

Product Pictures:

48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray

48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray

48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray

48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray

Application:

  • FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Factory Information (more information please view our company website: www.szyht.com.cn):


Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.

v It was established in 2003, and grows up rapidly.

v In 2011, branch factory was established in Huizhou city.

v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.

v In November 2016, factory moved to YHT industry park.

v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.

The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.

48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray

48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray48 Cores 12FO Dome Fiber Optic Enclosure Box With 4 Splitter Tray
