IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
Specifications
Brand Name :
CSYHT
Model Number :
CV012
Certification :
CE, ISO, RoHS
Place of Origin :
China
MOQ :
200pcs
Price :
USD7.5~12/piece
Payment Terms :
T/T
Supply Ability :
500pcs/day
Delivery Time :
10days
Packaging Details :
Carton
Color :
Black
Material :
PP Material with UV
Max Capacity :
120 fibers
Cable Port :
3pcs round port + 1 oval port
Waterproof :
IP68
Splice tray :
Max. 5pcs, each 24cores
Description

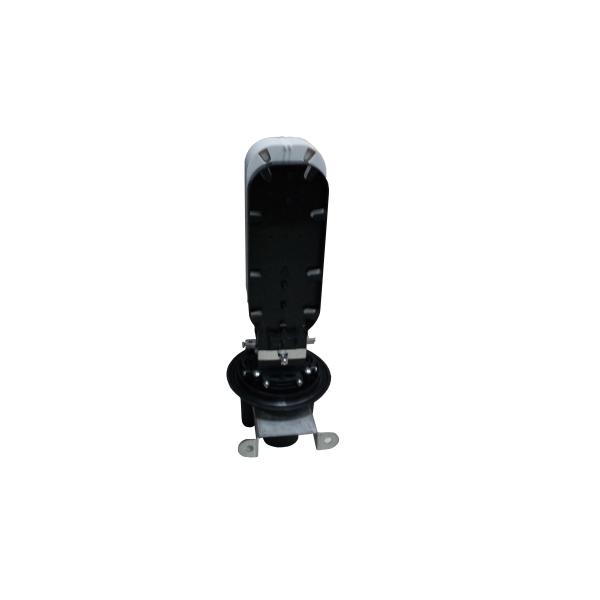

IP68 Waterproof Outdoor Using PP Material 96 Core Dome Fiber Splice Closure

Description

Fiber optic splice closure is an equipment that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application. It can be opened after sealing and can be reused without changing sealing material.

Application

CV012 dome type fiber optic splice closure is design and produced as per YD/T 814.1-2004 industry standard. It is suitable for fiber optical cable direct and branch splicing, connection protection.

3.1 Main electrical technical parameters

High voltage protective earthing device:

Insulation resistance: ≥2×104MΩ/500V (DC)

Voltage resistance: ≥15000V (DC) /1min, no breakdown, no arc.

3.2 Main mechanical parameters

Stretching: The closure can stand more than 600N axial tension

Pressure: The closure can stand 1500N/100mm pressure

Impact: The closure can stand impact 16N·m, impact 3 times

Bending: The closure and cable junction can stand bending tension 150N, bending angle ±45°for 10 cycles.

3.3 Basic structure and size

CV012 dome type fiber optic splice closure has 1 oval port and 3 round cable port.

Feature:

1) Splice tray: Max. 5pcs, each 24cores

2) Cable port: 3pcs round port + 1 oval port for cable entry without cutting, heat shrinkable sealing.

3)Waterproof: IP68

4)Wall-mounting, aerial hanger and pole holding

5) Material: high impact resistance PP materials with UV

Specification:

Model Material Dimension Max.capacity Splice tray
CV012 PP Φ168 × 434.5 mm 120 fibers 5pcs, each 24 fibers

IP68 Waterproof PP 96 Core Dome Fiber Splice Closure
