CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
CATV SC 24core ODF FTTH Optic Distribution Patch Panel
Specifications
Brand Name :
CSYHT
Model Number :
ODF-OW24
Certification :
CE, ISO, RoHS
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
L/C, T/T
Supply Ability :
300pcs/day
Delivery Time :
10days
Packaging Details :
Carton
Material :
Cold-roll steel
Color :
Black or White
Fiber Capacity :
24 Core
Dimension :
450x380x90mm
Weight :
7KGS
Fiber Adapter :
SC, ST, LC, FC...
Description

Outdoor fiber optic patch panel 24fibers SC 24core ODF FTTH Optic Distribution Patch Panel

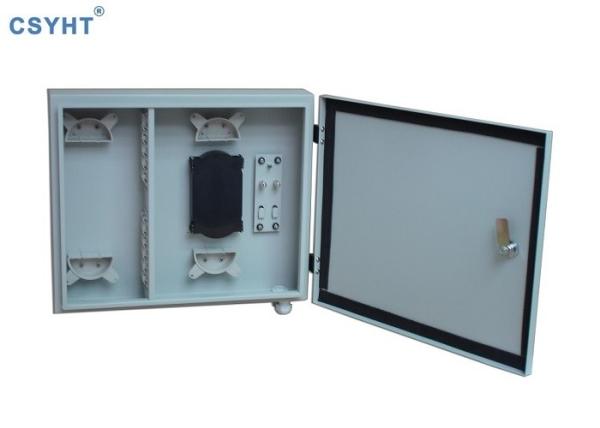

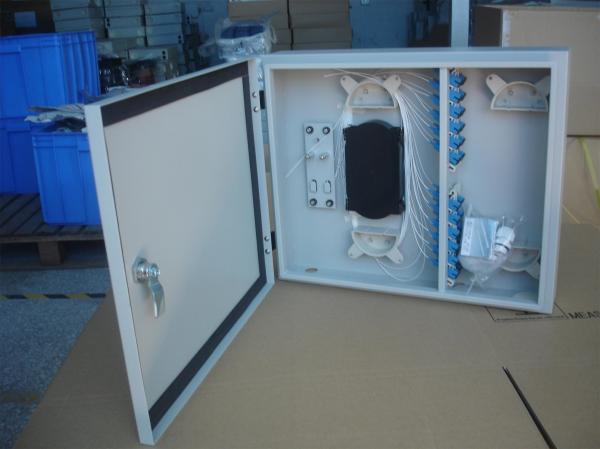

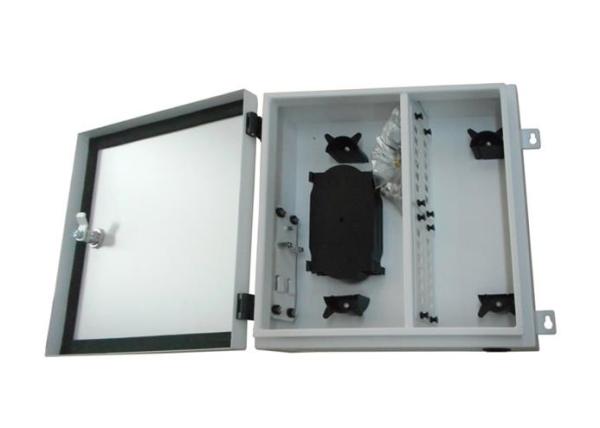

Outdoor wall type fiber optic distribution frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.

Features:

  • With plastic plates can manage both single fiber and ribbon & bundle fiber cables
  • FC, LC, SC, ST output interfaces optional
  • Large working space to integrate the pigtail, cables and adapters
  • Made of cold roll steel, electrostatic powder spraying
  • Special design ensures the excess fiber cords and pigtails in good order
  • Inner components as follows:
  • Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers
  • Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails
  • The brim of the box is sealed

Specification

Model Fiber Quantity Dimension Weight(Kg)
ODF-OW24 24 450x380x90mm 7.0

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN

CATV

CATV SC 24core ODF FTTH Optic Distribution Patch Panel

CATV SC 24core ODF FTTH Optic Distribution Patch Panel

CATV SC 24core ODF FTTH Optic Distribution Patch Panel

CATV SC 24core ODF FTTH Optic Distribution Patch Panel

CATV SC 24core ODF FTTH Optic Distribution Patch Panel
