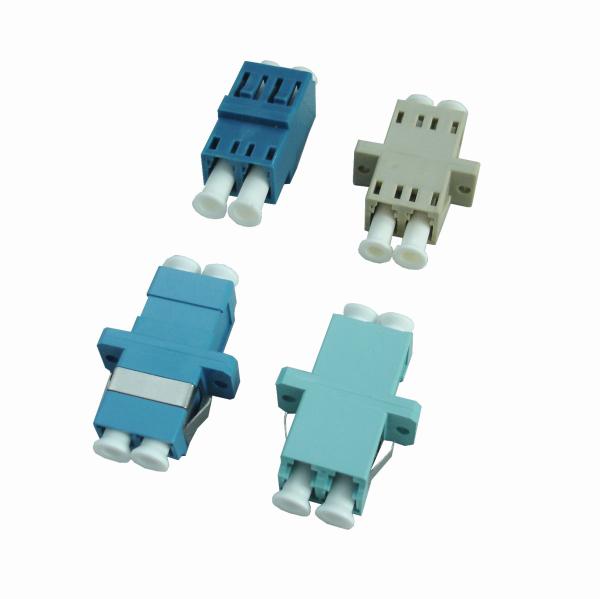

Zirconia Sleeve SC LC FC ST OM3 10gb Fiber Optic Adatper

Specifications

Brand Name :

CSYHT

Model Number :

Adapter

Certification :

ISO9001:2005

Place of Origin :

CHINA

MOQ :

50pcs

Price :

0.1~0.3USD

Payment Terms :

T/T

Supply Ability :

30000pcs per day

Delivery Time :

3 days

Packaging Details :

carton

Material :

ABS

Color :

Green for APC and Blue for UPC

Insertion loss :

≤ 0.3dB

Return loss :

≥ 40 dB

Application :

FTTH telecommunication

Packing :

individual package

Product name :

fiber optic connector SC/APC. SC/UPC. drop cable connector

Description

Fiber optic adatper SC. LC. FC. ST Multimode and siglemode OM3 10gb adapters simplex and duplex optical adatpers

Fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.

All fiber optic adapters are with zirconia sleeve. fiber optic adapters are available with both simplex adapters and duplex adapters.

Features:

Discordia, ANSI,TIA/EIA,NTT and JIS compliance

High precision alignment

Low insertion loss

High return loss

Good repeatability

Good changeability

Good temperature stabilization

Material:

Sleeve material: Zirconia

Housing Material: High Quality Plastic

Application:

CATV System

Telecommunications

Optical Networks

Testing / Measurement Instruments

Fiber to the Home

Parameter:

Description	Fiber Optic Adapter
Item NO.	Test Item	Unit	Standard & Requirement
			SM			MM
			PC	UPC	APC	PC
1	Insertion Loss(Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2
2	Return Loss	dB	≥45	≥50	≥60	≥30
3	Exchangeability	dB	≤0.2
4	Repeatability	dB	≤0.2
5	Durability	Time	＞1000
6	Operating Temperature	℃	﹣40～﹢75
7	Storage Temperature	℃	﹣45～﹢85

Details :

Zirconia Sleeve SC LC FC ST OM3 10gb Fiber Optic Adatper
