12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
Specifications
Brand Name :
CSYHT
Model Number :
DIN-00
Place of Origin :
Huizhou, China
MOQ :
200
Price :
7usd
Payment Terms :
T/T
Supply Ability :
5000pcs/week
Delivery Time :
7 working days
Packaging Details :
Cartons
Material :
Aluminum
Application :
FTTH FTTB FTTX Network,Telecommunication,Telecom
Product name :
Fiber Optic Din box
Color :
Can be customized,White or Black
Certification :
ISO9001
Type :
Din Rail mount
Adapter :
FC/SC/LC
Working temperature :
-40℃~65℃
Dimension :
133x136.6x35mm
Ports :
12 ports
Capacity :
12 Ports
Warranty :
3 years
Installation method :
Din Rail mounted
Cable port :
4 ports
Description
Description:

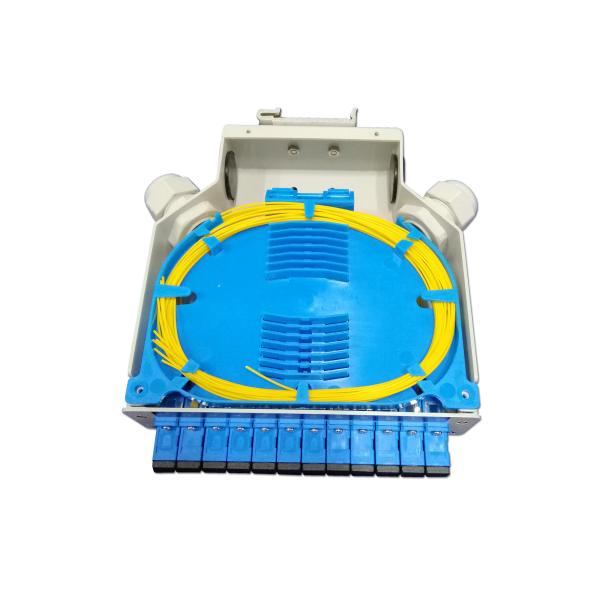

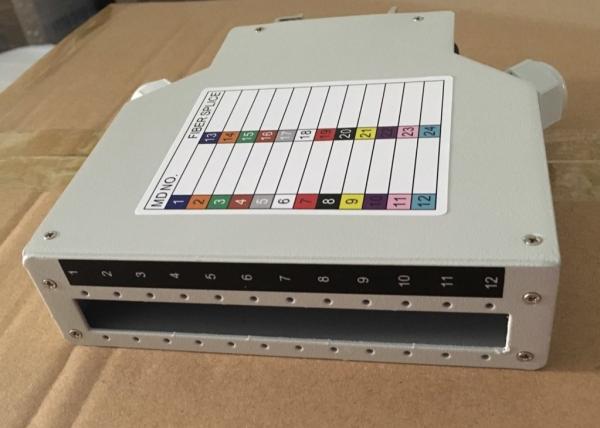

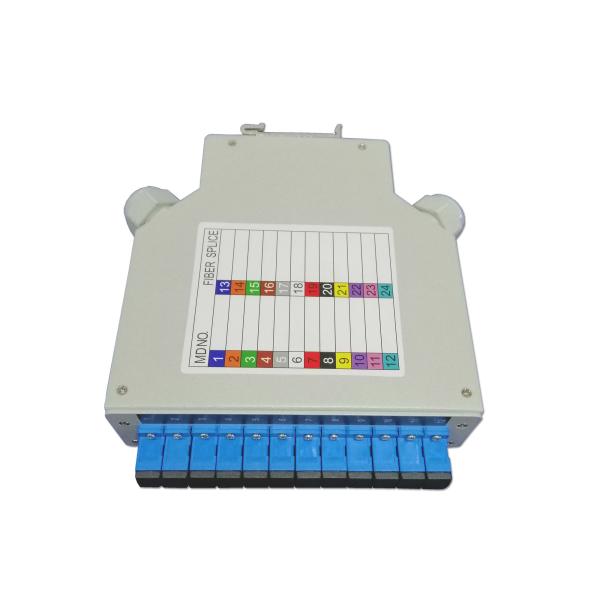

DIN-00 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use.
Features:
  • Reasonable design, aluminum box, light weight
  • Electrostatic powder painting, grey or black color
  • ABS plastic blue splice tray, rotatable design, compact structure
  • Max. 24 fibers capacity
  • FC, ST, LC, SC ... different adapter port available
  • DIN rail mounted application

Specification:

Model Dimension Material Adapter port Splicing capacity Cable port Application
DIN-00 133x136.6x35mm Aluminum 12 SC simplex Max. 24 fibers 4 ports DIN rail mounted

Accessories:

Item Name Specification Unit Qty
1 Heat shrinkable protection sleeves 45*2.6*1.2mm pcs As per using capacity
2 Cable tie 3*120mm white pcs 2

Details :

12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box

12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box

12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box

12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box

12 Port SC FC LC ST FTTX FTTB Fiber Optic DIN Box
