Specifications
Brand Name :
CSYHT
Model Number :
OTB-P023
Certification :
ISO9001:2015
Place of Origin :
china
MOQ :
50
Price :
USD19
Payment Terms :
T/T, L/C
Supply Ability :
500 Set/Sets per week
Delivery Time :
7days
Packaging Details :
Carton
Material :
abs
Application :
outdoor wall mounted or pole mounted
Adapter :
Max. 18pcs SC simplex adapters
Dimension :
232x358.5x130.5mm
Ports :
2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports
Capacity :
36fibers
Description

FTTH outdoor fiber optic distribution box 36 FIBER ftth cable termination box

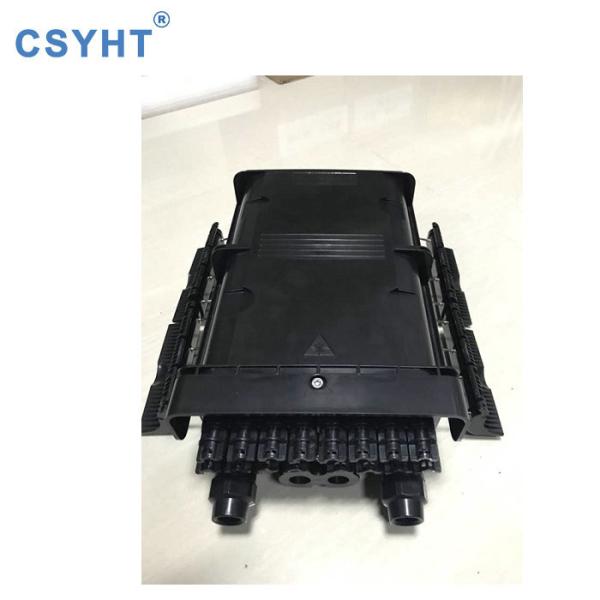

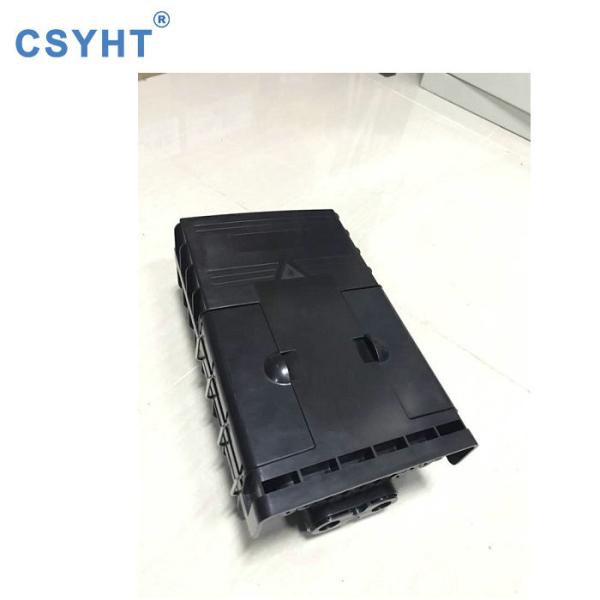

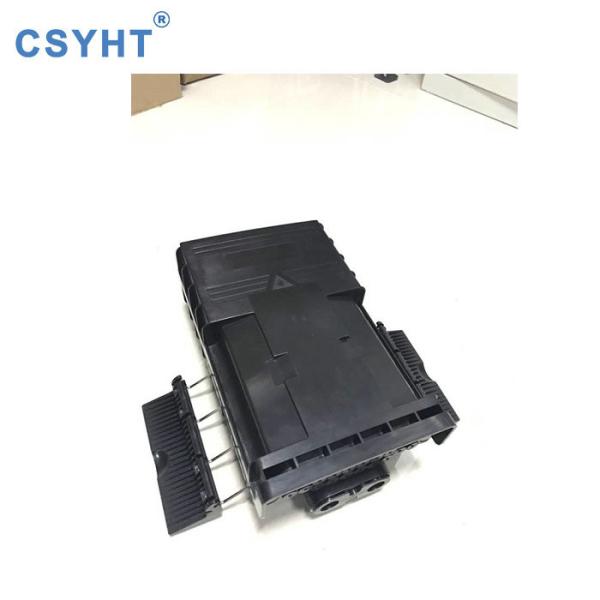

OTB-P023 is a fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.

Features:

Material: ABS plastic

3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing)

Can load 18pcs SC simplex adapter

Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter

2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports

Wall mounting and pole mounting application

Waterproof, outdoor using, IP65

Specification:

Model Capacity Dimension Adapter port
OTB-P023 36 fibers 232x358.5x130.5mm Max. 18pcs SC simplex adapters

Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Waterproof IP65 Fiber Optic Distribution Unit , Fiber Optic Cabinet Long Lifespan



YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

Waterproof IP65 Fiber Optic Distribution Unit , Fiber Optic Cabinet Long Lifespan

Waterproof IP65 Fiber Optic Distribution Unit , Fiber Optic Cabinet Long Lifespan

Waterproof IP65 Fiber Optic Distribution Unit , Fiber Optic Cabinet Long Lifespan

Waterproof IP65 Fiber Optic Distribution Unit , Fiber Optic Cabinet Long Lifespan

FAQ:
1. Does YHT is real manufacturer?
Yes. YHT has its R&D technical person, its own factory.

2. Can YHT support some modification for this box?
Yes. You can send us your modified requirements to us.
And we can support design and do a new box for you.

3. What is the lead time?
It is about 7 days production time after confirm order.
The actual delivery date will be checked as per production schedule.

4. Can YHT support better price?
Yes, we can support better cost as per different qty, requirements, packing etc.
