Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail
Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail
Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail
Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail
Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail
Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail
Specifications
Brand Name :
CSYHT
Model Number :
ODF-RS-1U3AP
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
50
Price :
USD15
Payment Terms :
T/T
Supply Ability :
500 Set/Sets per week
Delivery Time :
7days
Packaging Details :
Carton
splicing capacity :
24fibers
Application :
FTTH FTTB FTTX Network, Telecom, CATV, LAN, DPC ETC.
Color :
Black, white, customized
Product name :
19'' slidable Patch Panel
Material :
Cold-rolled Steel
Dimension :
1U, 482X230X44.5mm
Adapter :
ST, FC, SC, LC, SC/FC/LC/ST
Product type :
19'' slidable rack mounted type,no sliding rail
Description

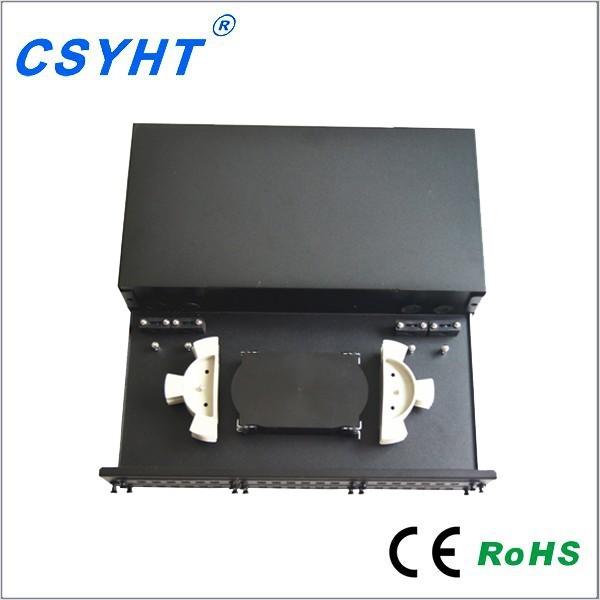

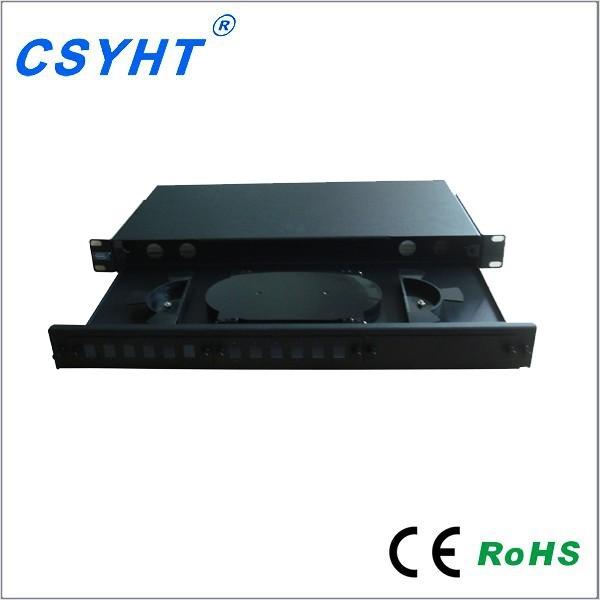

odf 24 fibers drawer slidable rack mounted 19inch fiber optic distribution frame without sliding rail

Slidable Rack-mount Fiber Optic Distribution Frame is 19’’ rack mount standard design suitable for ETSI standard 19’’ racks, can load with ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail

Features:

  • Standard size, light weight and reasonable structure

v Slide out drawer for easy cable management

  • Suitable for ribbon and single fiber, easy for management and operation
  • Compact design for space saving, 4pcs cable port at back side of the patch panel.
  • Various panel plate to fit different adapter interface
  • No guide rail.

Painting:

1.Electrostatic Powder spraying, Black or Hoar color optional.

2.Other color according to customer’s demand.

Note: If customer has no special requirement, we will spray hoar color.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV

Specification:

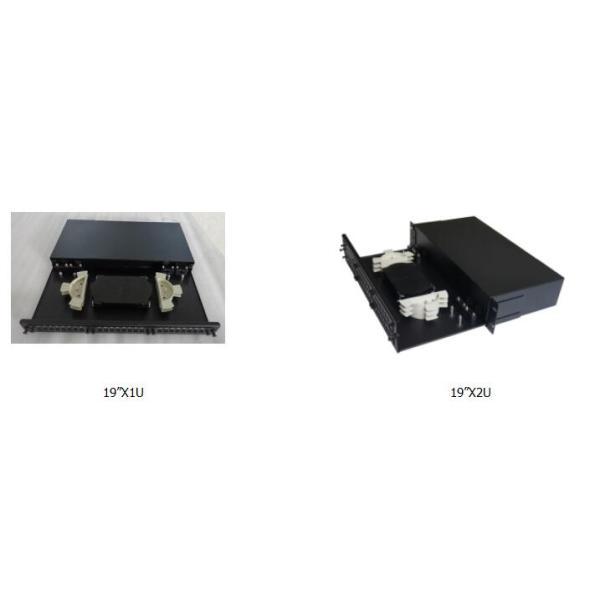

Model Fiber Quantity Height Dimension(mm) Weight(Kg)
ODF-RS-1U3AP 12F or 24F or 48F 1U 482X230X445 2.5
ODF-RS-2U3AP 48F or 96F 2U 482X230X88 4.0

Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail

Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail

Odf 24 Fibers Drawer Fiber Optic Distribution Frame Rack Mounted Without Sliding Rail

FAQ:
1. Does YHT is real manufacturer?
Yes. YHT has its R&D technical person, its own factory.

2. Can YHT support some modification for this box?
Yes. You can send us your modified requirements to us.
And we can support design and do a new box for you.

3. What is the lead time?
It is about 7 days production time after confirm order.
The actual delivery date will be checked as per production schedule.

4. Can YHT support better price?
Yes, we can support better cost as per different qty, requirements, packing etc.
