Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure
Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure
Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure
Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure
Specifications
Brand Name :
CSYHT
Model Number :
OTB-0212-A
Certification :
ISO9001,ROHS
Place of Origin :
CHINA
MOQ :
50pcs
Price :
USD6.6/PCS
Payment Terms :
T/T
Supply Ability :
50000pcs per month
Delivery Time :
15days
Packaging Details :
carton
Material :
ABS Plastic
Application :
FTTH FTTB FTTX Network,Telecommunication
Product name :
Fiber Optic Terminal Box
Color :
White or Black
Type :
Distribution Box,Waterproof outdoor,splitter box
Adapter :
FC/SC/LC
Working temperature :
-40℃ ~ +80℃
Dimension :
L*W*H(mm)209.5x260.5x95mm
Ports :
12 ports
Capacity :
12 FO
Warranty :
1 -2year
Protection level :
IP65
Installation method :
wall-mounted or pole mount.
Description

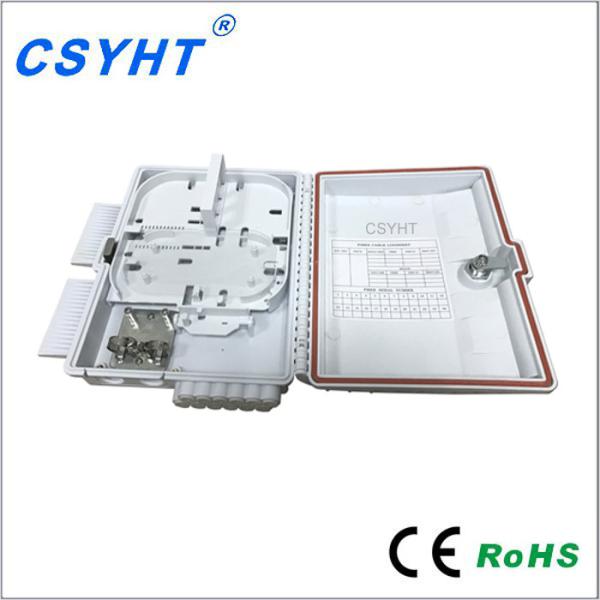

Fiber optic terminal box OTB-0212-A is a box for fiber terminal distribution in optical fiber transmission and communication network.

It can be 12 fibers splicing, protection and distribution.

Features:

  • Material: PP plastic.
  • Can accommodate 1x4,1x8 PLC splitter.
  • Rainfall resistant, IP65 outdoor using.
  • Can load 12pcs LC, FC, ST, SC … adapters.

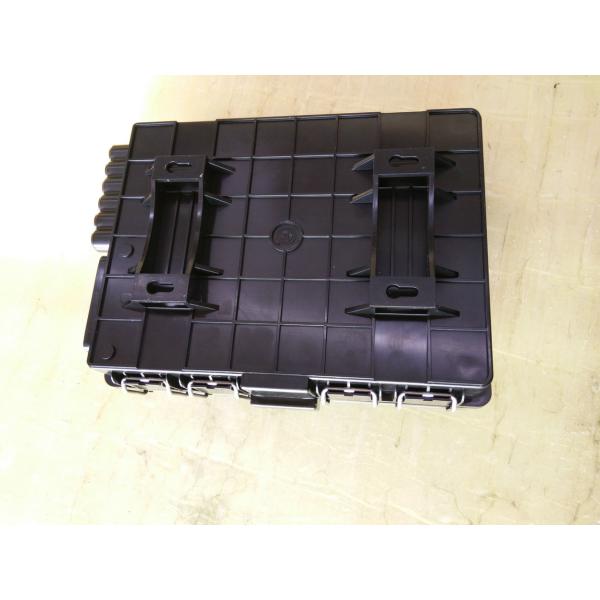

  • Wall mounting and pole mounting application.
  • The cover with 2 reinforcing closing pieces, easy to open and close.
  • 2pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;
  • or 2pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm);
  • 12pcs exit ports for FTTH drop cable.

Specification:

Model Capacity Dimension Remark
OTB-0212-A 12 ports 209.5x260.5x95mm 1 rotary splice tray

Application

  • FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks

Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure

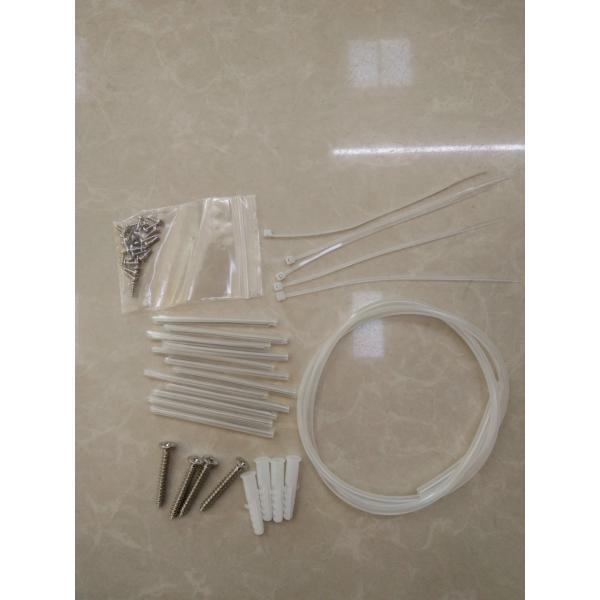

Accessories:

Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure

YHT company profile as following for your reference.

Plastic 12 Ports Outdoor Fiber Optic Distribution Box Wall / Pole Mount Enclosure

Why Choose YHT?

  1. 36000 Square meterS factory,main for passive fiber optic product ,larger production capacity ensure the fastest delivery.
  2. High quality Control with ROHS,ISO9001:2015 and so on approved.
  3. Precise and advanced equipments
  4. More than 16 years of industry experience and involved main markets all over the world
