FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
Specifications
Model Number :
OTB-0208 series
Certification :
CE, RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
50
Price :
USD3.8/PC
Payment Terms :
T/T
Supply Ability :
2000PCS/week
Delivery Time :
10days
Packaging Details :
10PCS; 50*40*28; 8.6KG
Material :
ABS
Dimension :
206.8x230.3x52.7mm
Fiber capacity :
8fibers
Splitter :
1pc 1x8 PLC steel tube splitter
Adapter ports :
SC, LC,, FC, ST
Application :
FTTH GPON
Description

FTTH Gpon Network 8 Cores Outdoor Terminal Box with 1X8 Fiber Optic PLC Splitter

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx
communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid
protection and management for the FTTx network building.

Features:

1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.
6. Space saving! Double-layer design for easier installation and maintenances:
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps
12. Lock provided for extra security

Product Name
8 cores fiber optic terminal box
Material
ABS
Dimension (mm):
 206.8x230.3x52.7mm
Color
White
Max Capacity
8 Cores
cable entry
1 oval or 2 round cable entry ports; 8 or 9pcs cable exit ports
Splitter type
 Can accommodate 1x4,1x8, 2x4, 2x8 PLC splitter
Used
Wall mounted

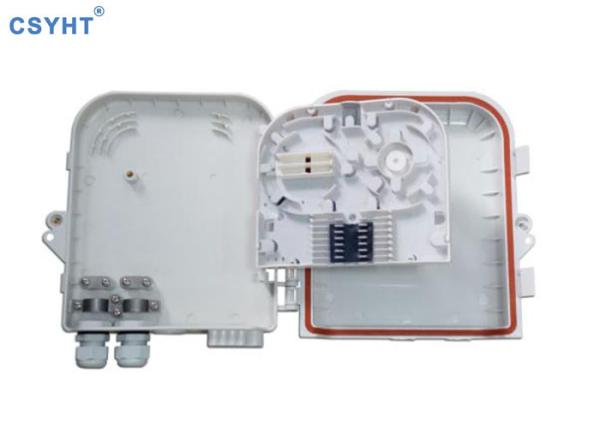

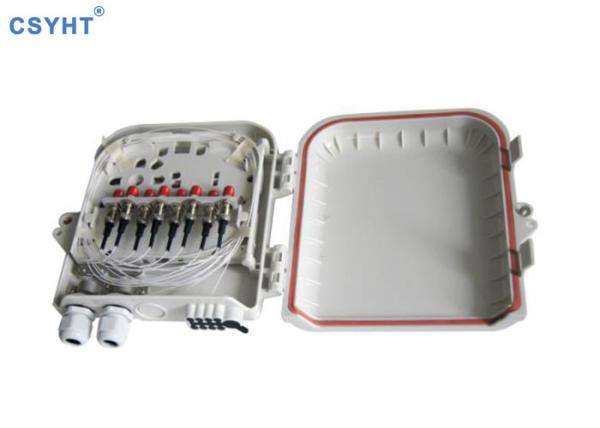

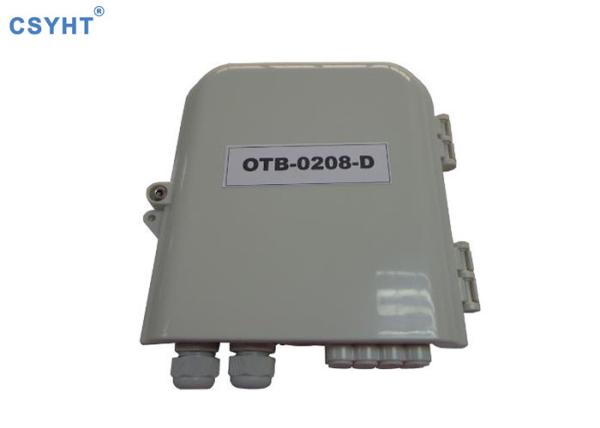

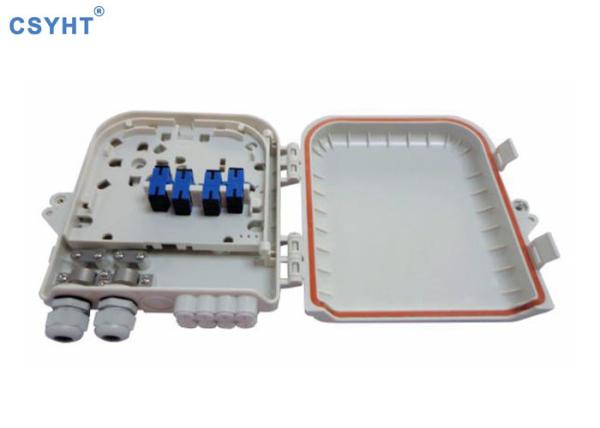

Product pictures:

FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter

Accessories:

FTTH Gpon Network 8 Cores Outdoor Terminal Box With 1X8 Fiber Optic PLC Splitter
