1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel
Specifications
Brand Name :
CSYHT
Model Number :
ODF-RS24
Certification :
CE, ISO, RoHS
Place of Origin :
China
MOQ :
50pcs
Price :
USD8~12
Payment Terms :
T/T
Supply Ability :
300pcs/day
Delivery Time :
10days
Packaging Details :
Carton
Fiber Capacity :
Max. capacity 24 fibers, two splice trays of 12 fibers
Height :
1U
Dimension(mm) :
435x317.3x45.5
Material :
Cold-roll steel
Color :
Black/white
Description

Slidable fiber optic patch panel

ODF-RS24

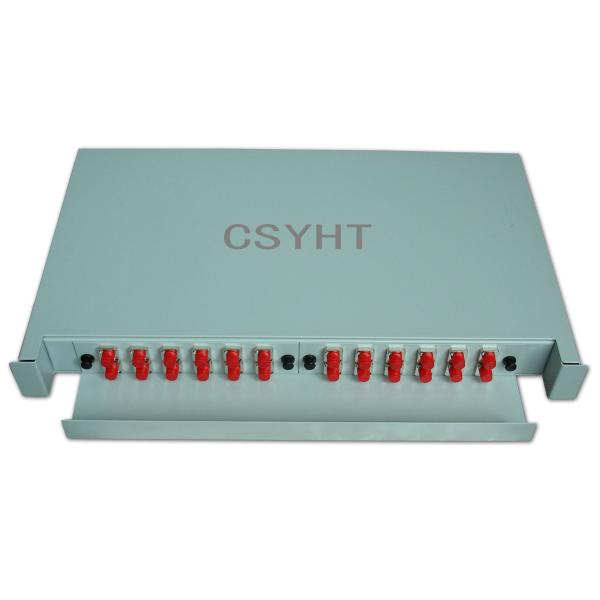

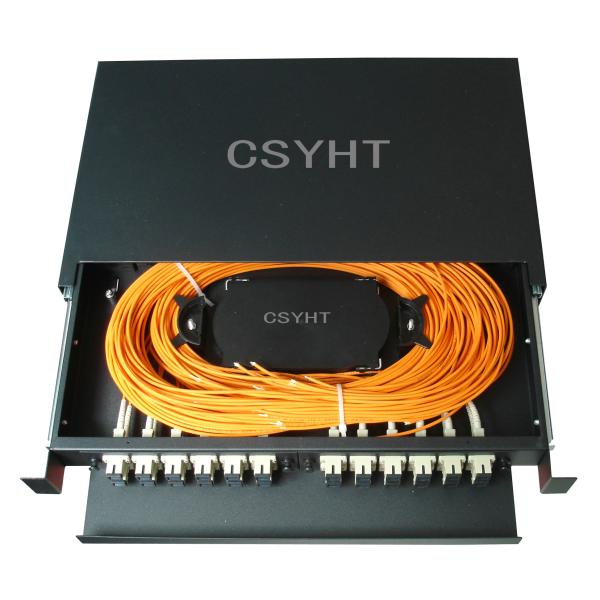

ODF-RS24 is a 19’’ rack mounted fiber optic patch panel that made of cold roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has aluminum sliding fitting with self-locking functions prevent the drawer from falling when moved.

1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel1u 24 Cores Fixed FTTH Fiber Optic Terminal Box 19 Inch Rack Mounted Patch Panel

Features:

Standard size, light weight and reasonable structure

Slide out drawer for easy cable management

FC, SC, ST, LC ... adapter patch panel for option, easy to replace

Front access panel design for easy operation

Suitable for 19’’ standard optic distribution cabinets

Max. capacity 24 fibers, two splice trays of 12 fibers

4 fiber cable entry ports at rear side

White or black color

Material: Cold-roll steel

Specification:

Model Capacity Height Dimension(mm) Weight(Kg)
ODF-RS24 24 1U 435x317.3x45.5 4.2

Application:

Telecommunications

Fiber to the home (FTTH)

LAN / WAN

CATV
