Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
Specifications
Brand Name :
CSYHT
Model Number :
OTB-S48
Certification :
ISO9001:2015
Place of Origin :
china
MOQ :
50
Price :
USD15.5
Payment Terms :
T/T, L/C
Supply Ability :
500 Set/Sets per week
Delivery Time :
7days
Packaging Details :
Carton
Material :
abs
Application :
outdoor wall mounted or pole mounted
Adapter :
16 sc simplex
Dimension :
380*355.8*140.5mm
Ports :
2 cable entry port (without cutting)
Capacity :
48fibers
Description

outdoor wall mounted Communication FTTH Drop Cable 48Core For Terminal cable Box

Fiber optic drop cable terminal box OTB-S48 is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

Standard size, light weight and reasonable enclosed structure.

Material: ABS plastic, water-proof IP65.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc.

Cable, pigtails, patch cords are running through its own path without disturbing each other.

Suitable for SC, LC, FC, ST ... etc. adapters and can load PLC splitter. .

Distribution panel can be flipped up, easy for maintenance and installation.

Indoor & outdoor wall mounted, pole mounted application.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV

Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core

Specification:

Model Max. capacity

Dimension

(mm)

 Splice tray Splitter Cable entry port Adapter port

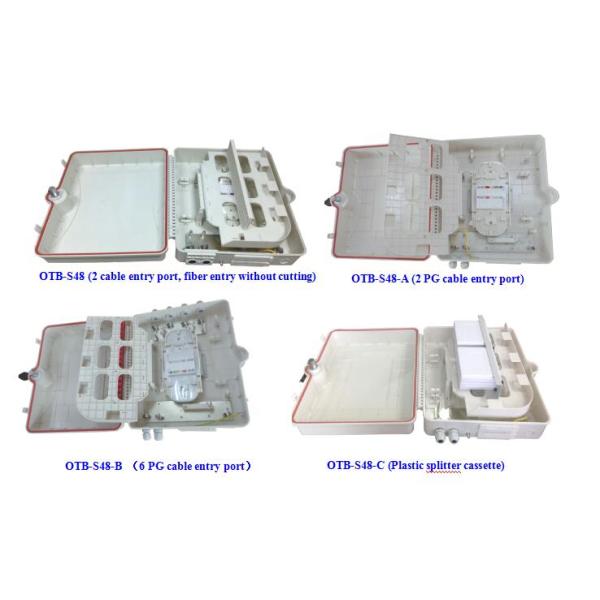

OTB-S48 48FO 380*355.8*140.5 2 tray, each 24FO 1pc PLC Splitter 1*8~32 box type 2 cable entry port (without cutting) 48 SC simplex
OTB-S48-A 48FO 380*355.8*140.5 2 tray, each 24FO 1pc PLC Splitter 1*8~32 box type 2 PG cable entry port 48 SC simplex
OTB-S48-B 48FO 380*355.8*140.5 2 tray, each 24FO 1pc PLC Splitter 1*8~32 box type 6 PG cable entry port 48 SC simplex
OTB-S48-C 48FO 380*355.8*140.5 2 tray, each 24FO

4pcs 1*8 plastic splitter cassette

Or 2pcs 1*16 plastic splitter cassette

 2 PG cable entry port No


YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core

Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core

Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core

Wall Mounted Optical Network Terminal Box , Fiber Optic Cable Junction Box 48 Core
