MM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall Mounted
MM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall Mounted
Specifications
Brand Name :
CSYHT
Model Number :
G015
Certification :
ROHS, ISO
Place of Origin :
China
MOQ :
100
Price :
USD0.2-0.8
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000PCS PER DAY
Delivery Time :
3 days
Packaging Details :
Carton
Material :
ABS plastic
Color :
white
Capacity :
2 ports for max. 4c
Application :
indoor wall mounted
Size :
100x80x23.4cm
Adapter Port :
2 Port SC Simplex/ LC Duplex Slots
Description

FTTH Termination Box 2 Port SC Simplex/ LC Duplex Slots Indoor Wall Mounted

Model Number: FP-016

Product Description:
FP-016 is an Indoor FTTH Plastic Fibre Optical Cable Access Termination Box 2 Port SC Simplex/ LC Duplex Slots.

2 port mini odf indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fibre port. it covers the capacity of 1core, 2cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation


Features:
(1) Support MM and SM fiber connection

(2) 2 ports for SC simplex, LC duplex adapters

(3) With hinged cover, easy to open and close

(4) The bottom part of cover can turn up, easy for fiber operation

(5) Radian appearance makes it slinky

(6) ABS plastic, light weight, reasonable design

Specification:

Model Dimension(mm) Material Adapter port Splicing capacity Application
FP-000 86.5x86.5x20.4 ABS 2 SC Simplex 2 cores Indoor wall mounted
FP-008 86X86X25 ABS or PP 2 SC Simplex 2 cores Indoor wall mounted
FP-009 97.9x86.3x22 ABS 2 SC Simplex 2 cores Indoor wall mounted
with hanged cover
FP-010 97.9x86.1x27.9 ABS 2 SC Simplex 2 cores Indoor wall mounted
with hanged cover
FP-011 85x85x26 ABS 2 SC Simplex 2 cores Indoor wall mounted
FP-00A 130x84x25 ABS 2 SC Simplex 2 cores Indoor wall mounted
FP-015 86.3x110.6x23 ABS 2 SC Simplex or LC Duplex Max. 4 fibers Indoor wall mouned, with hinged cover
FP-016 100x80x23.4 ABS 2 SC Simplex or LC Duplex Max. 4 fibers Indoor wall mounted

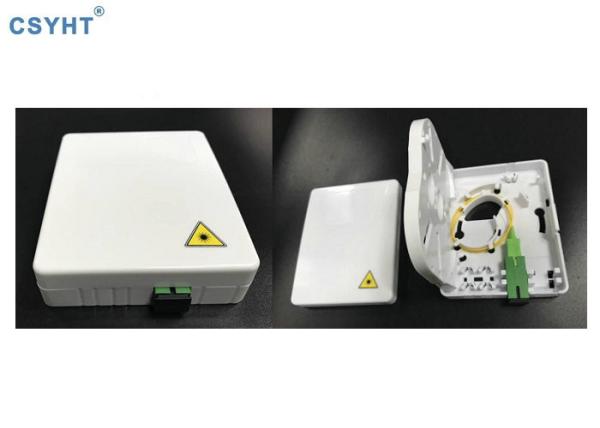

Pictures:

MM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall Mounted

MM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall MountedMM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall Mounted

UV, UL94-V0 request optional.

MM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall Mounted
