Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
Specifications
Brand Name :
JiZhong
Model Number :
JZ9327B-G
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Standard export package
Working wavelength: :
PON：TX1310，RX1490;
emitting power: :
1.5 ~ +5dBm (GPON)
receiving sensitivity: :
≥ -27dBm
Optical fiber connector: :
PON：SC/UPC
The user side Ethernet ports: :
1Ge+3FE
power supply: :
AV110～255V→DC12V 0.5A
Description

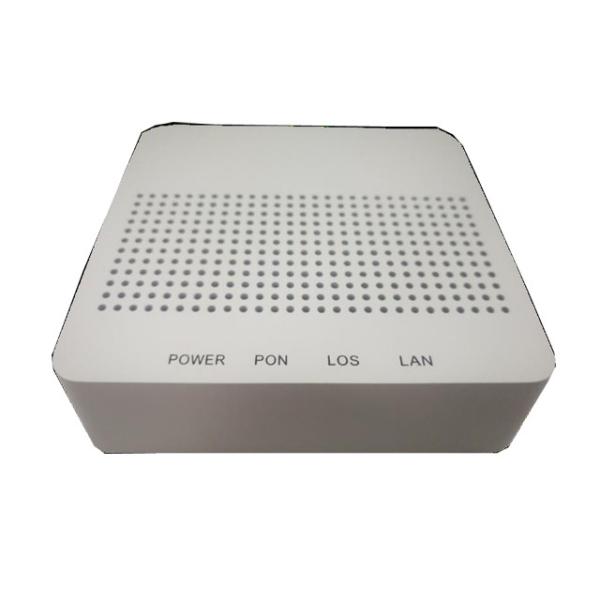

Single Port FTTH ONT Mini 1GE Gpon Epon ONU

JZ9336B-G

The Brief Introduction of FTTH ONT SFU:


The JZ9336B-G is an single port SFU Optical Network Terminal (ONT) for home
users and Small Office Home Office (SOHO) users. It implements ultra-broadband
access for home and SOHO users through the GPON technology in a low-cost way.
Compliant with standard OMCI definition, JZ9336B-G GPON ONT is manageable at
remote side and supports the full range FCAPS functions including supervision,
monitoring and maintenance.

Key Features of FTTH ONT SFU:

*Auto-negotiation and MDI/MDIX auto-sensing
*Built-in layer-2 switch
*Advanced data features such as VLAN tag manipulation, classification, and
filtering;

Power Supply:
* +12V/0.5A (feed via external AC/DC adapter)
* 2-PIN power adaptor input
* Dyin Gasp gsupport
* Power switch

LED:
* LAN
* LOS
* PON

Technical Specification:

Optical SPEC Working wavelength nm PON:TX1310,RX1490;
emitting power dBm 1.5 ~ +5(GPON)
receiving sensitivity dBm ≥ -27
Optical fiber connector / PON:SC/UPC
Port The user side Ethernet ports / 1GE
Other The power supply V/A AV110～255V→DC12V 0.5A
Working temperature ℃

-5～45

Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu

Hot Sale Fiber Optical Equipment Single Port FTTH ONT Mini 1GE Gepon Gpon Epon Onu
