Specifications
Brand Name :
JiZhong
Model Number :
JZH-6118
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Standard export package
Product Name: :
PON OTDR
Power test range (dBm): :
-70~+6; -50~+26
Data storage: :
1000 groups (USB data output)
Red light source power（mW） :
≥1mW
Battery :
3 x1.5V AA Rechargeable
Calibration wavelength(nm): :
850, 1300, 1310, 1490, 1550, 1625nm
Dimension(mm): :
200x90x50mm
Description

FTTH Combo Tester PON OTDR

Model NO:JZH-6118

Description of FTTH Combo Tester:

This tester is used to carry out troubleshooting positioning and analysis for FTTH and FTTX optical networks. It features the online testing function the same as OTDR does (under prerequiste of continuous light signal), it also can test the troubleshooting and locating through optical splitter.

During the installation, operation and maintenance of optical network, it has stable performance and low cost so that it has high work efficiency as regards to operation and maintenance. Excellent repeat rate and less complicated setting, one-key maneuvering, the test result can be digitally displayed to the extent of cause of trouble.

Integrate red light source, optical power meter function which can easily test the trouble position in blind area in the fiber cable. It can also find fiber cable, test optical power of multi wavelength. It features dust-proof, shake-proof, suitable to field operation. An easily replaceable of 3 batteries of AA 5# are used inside.
Key Features:

*Quick accurate test: Troubleshooting such as loss, break point and reflection. Quick positioning and value display;

*Break point test over whole line (0-50KM customization);

*Automatic voltage control and regulating pulse width;

*Suitable for any test under kinds of environments;
Technical Parameters of PON OTDR:
ITEMS TWH-6118
Type of light source (NM) 1625
Type of fiber 9/125 um SM fiber
Type of connector FC/PC
Type of tester InGaAs
Pulse width Automatic
Max test distance (KM) Reflect accident 6.5(≥1.0dB)
Non-reflect accident 6.5(≥1.5dB)
Dead zone of reflect accident(M) 3
Accuracy (reflect accident) (M) ± (2+2*10 (-4) *distance)
Optical power meter
Calibration wavelength(nm) 850, 1300, 1310, 1490, 1550, 1625
Power test range (dBm) -70~+6 -50~+26
Data storage 1000 groups (USB data output)
Red light source
Red light source power(mW) ≥1
Battery 3 x1.5V AA Rechargeable
Working temp. (℃) -5~40
Shelf temp. (℃) -10~60
Dimension(mm) 200x90x50
Weight (g, excluding battery) 320

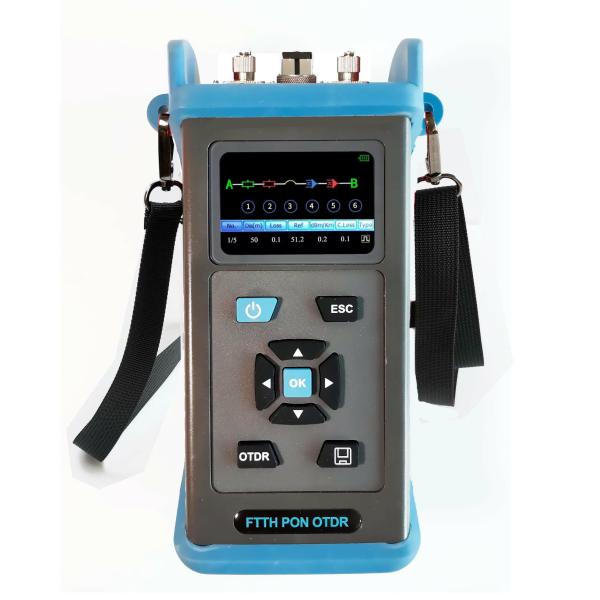

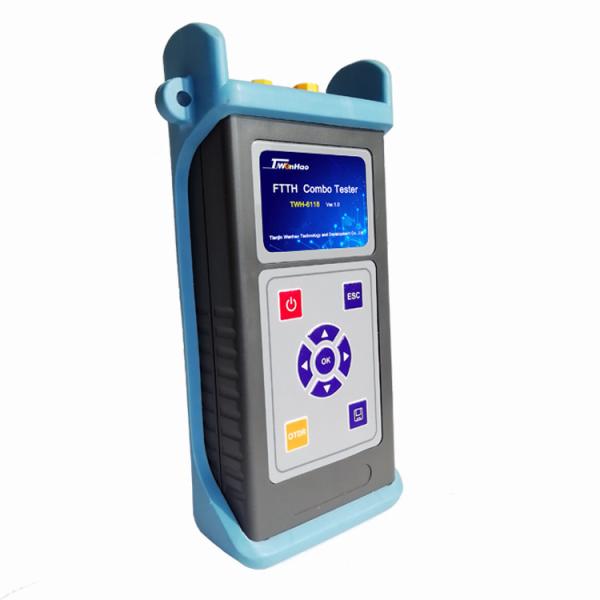

Picture Display of FTTH PON OTDR:

Stable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester Device

Stable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester Device

Stable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester Device
Application Scenarios:Locate optical fiber fault
Stable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester Device

Visual fault locator:

Stable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester DeviceStable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester DeviceStable Performance And Low Cost Online Testing Function PON OTDR Ftth Combo Tester Device

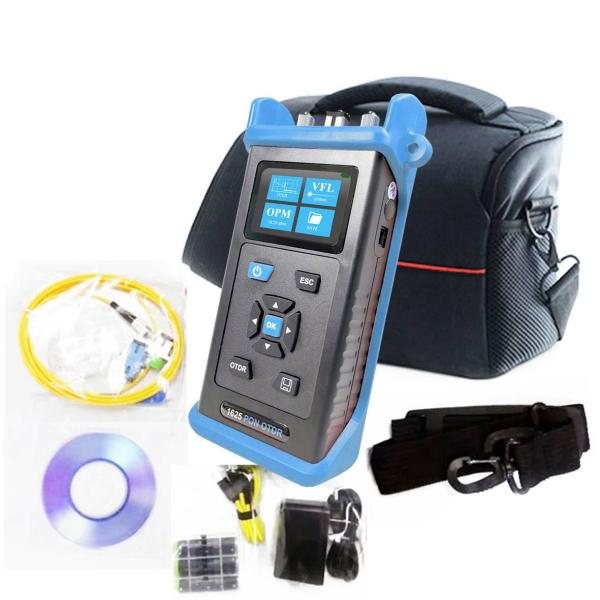

Accessories:
Host 1 set
Portable bag 1
USB line 1
Connector 3
Cleaning cotton 1 package
User manual 1
Battery optional
