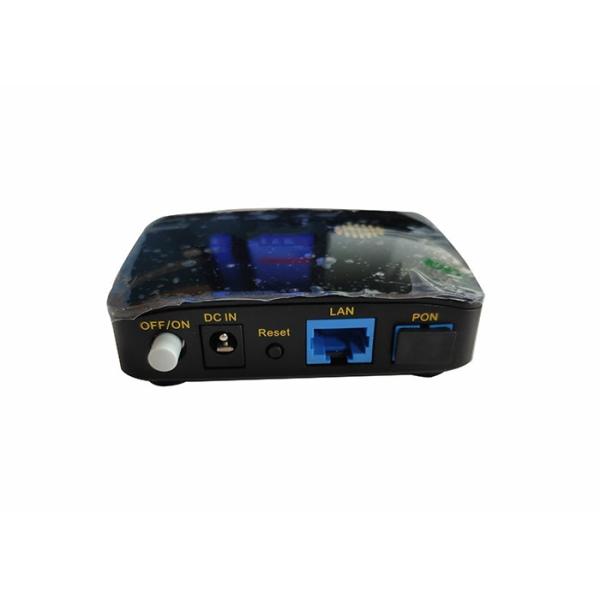

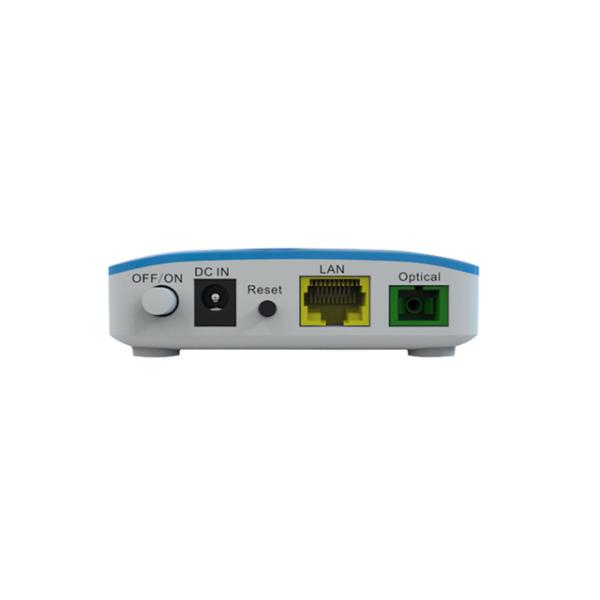

OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
Specifications
Brand Name :
JIZHONG
Model Number :
JZOG-1120
Certification :
ISO9001,CE,RoHs,WIFI
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000Pcs/M
Packaging Details :
20PCS/CTN,CTN SIZE:42*37*27CM
ONU Type :
GPON FTTH ONT
Chipset :
Realtek
Power :
DC
Indicator :
PWR,LOS,NET,LAN
Firmware Language :
English
Size :
85*85*18mm
Weight :
<1kg
Description

OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC​

Features

  • SerDes and DCR, support adaptive EPON/GPON
  • Internal 500MHz high performance ARM(32KBI/32JB D L1Cache) processor
  • Support EPON/GPON protocol and function applications; GPON compliant with ITU-T G.984.1/2/2/4; package meeting G.984 Ethernet over GEM; downstream speed- 2.488Gbit/s white upstream speed-1.244Gbit/s; EPON meeting 802.3-2005 and CTC EPON requirement with parallel upstream and downstream rate of 1.25Gbit/s

ONT Type OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
Connector type SC/APC
PON No. 1
Fiber mode Single fiber
Wavelength Transmitting port:1310 +/-20nm, Receiving port:1490 +/-10nm
Portocol GPON: ITU-T G.984.1/2/3/4; EPON: 802.3-2005 and CTC EPON
Speed GPON: download 2.488Gbit/s, upload 1.244Gbit/s;
EPON: symmetric 1Gbit/s
Output optical power Min. 0dBm; max. +4dBm
Receiver sensitivity max -27dBm
Receiver optical power Min. -3dBm
Damaged threshold value 7dBm
Optical link length Max. 20km
Power supply(DC) DC 12V 0.8A
Power loss ≤1.5W
Working tempreturer -10 ~ +45℃
Storage tempreture -40 ~ +75℃
Ralative humantity max.95%%

OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC

OEM English Firmware GPON FTTH ONT 1GE LAN With 12V Power Supply DC
