Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network
Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network
Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network
Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network
Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network
Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network
Specifications
Brand Name :
JiZhong
Model Number :
DCR-3321
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5 work days
Packaging Details :
export standard package
Product name: :
DVB-C Set Top Box
Input Frequency: :
47~858MHZ
Channel Decode: :
DVB-C EN300-429,ITU J83 A/C
Demodulation: :
16 QAM、32 QAM、64 QAM、128 QAM、256QAM
Audio Decode: :
MPEG-1/2 Layer I/II/III, Dolby AC3/AC3+ (option)
voltage: :
12V/1A
Power consumption: :
12W（MAX）
Description

J83.A B C Digital TV Set Top Box With Remote Control

Model NO: DCR-3321

Product Overview:

This HD digital DVB-C STB DCR-3321 adopts advanced QAM demodulation and MPEG2/MPEG4/H.264/ HEVC decoding, which is able to receive and decode all DVB/MPEG/H.264/HEVCcompatible CATV network programs. It supports various CAS to fulfill descrambling and viewing of encryption programs as well as FTA programs; supports EPG and advertisement business to convenience customized program reservation and viewing in advance; it also provides more space for operators benefits. User friendly UI and quick switch of channels also improve customer experience

Main Features:

*Full compliance with DVB-C/HEVC/H.264/H.263/MPEG-4/MPEG-2standard;

*Support multiple QAM modulation method (32 QAM and 64 QAM, 16 QAM and 64 QAM and 256 QAM);

*Various CAS

*Support the standard EPG, weeks information display, program reservation management and EPG AD business;

*Support PVR& time-shift function and USB 2.0 PAL/NTSC standard fit automatically and support 4:3 &16:9 switch;

*Support sound and volume settings independently and program memory after blackout;

*Support auto& manual upgrade, OTA, USB,RS232 and online software upgrade;

Technical Parameters:

Main Specification:
Model Number DCR-3321
Chips M88CC8201,(High-performance dual MIPS CPU architecture)
DDR 128MB
FLASH 8MB
Tuner M88TC6800
Tuner
Input Frequency 47~858MHZ
Channel decode:
Standard DVB-C EN300-429,ITU J83 A/C
Demodulation 16 QAM,32 QAM,64 QAM,128 QAM,256QAM
Symbol rate 3.6~6.952MS/s
Video Decode
Standard HEVC,H.265,H.264, H.263, MPEG-2, MPEG-4, AVS, AVS+,VC1
Video format 4:3,16:9
Resolution NTSC 480i,PAL576i,480p,576p,720p,1080i/p
Audio Decode
Audio decode MPEG-1/2 Layer I/II/III, Dolby AC3/AC3+ (option)
Audio Mode Left/right/stereo
Front Panel:
LED Display Power Indicator
clock LED indicator
Infraed receiver 38KHz,NEC Symbology
Interface:
Power on/off Self-locking switch
DC 2.54m DC
IR IR loop out(Adopt earphone interface)
Audio/Video output HDMI HD
Left/right//CVBS
RF input British F female
USB USB2.0,TYPE-A
CA Support big card
Power supply:
voltage 12V/1A
Power consumption 12W(MAX)

Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network

Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network

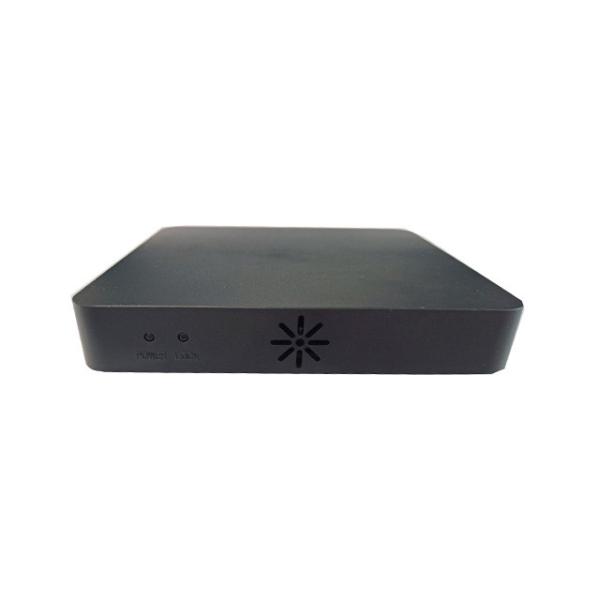

Front Panel:

1.STB power status LED

2.STB signal status LED

2.Card slot

3.USB output

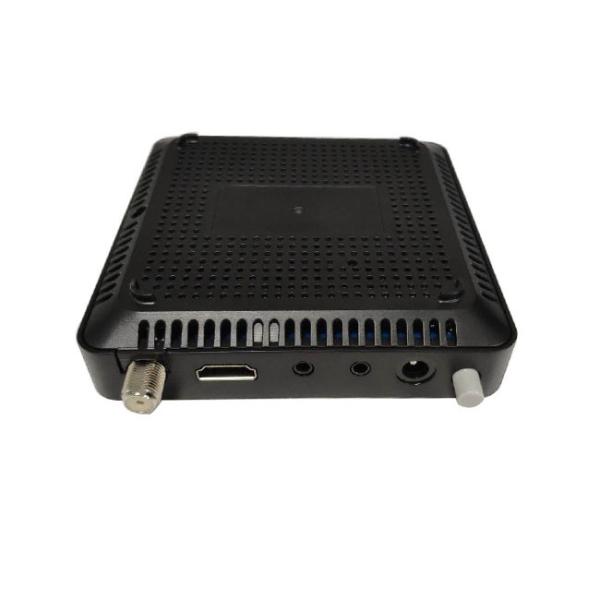

Rear Panel:

Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network

1.Power switch

2.DC IN

3.IR output

4.AV output

5.HDMI output

6.RF IN

IR Remote Control:

Picture Item Function
Multiple Language Firmware J83.A B C Digital TV Set Top Box For CATV Network Power
Mute
Number 0-9 Press the number button and the TV will enter to related channel.
MENU Select main menu under TV mode and back to main menu
EPG Channel guide
CH+/CH- Channel number increase /decrease; cursor move left/right for menu
VOL+/VOL- Volume increase/decrease, cursor move left/right for menu
OK Operation confirm
EXIT Terminate the current application/go back to the parent menu
Back Return to the previous channel under TV mode
TV/RAD TV/Radio switch
Audio Left/right channel switch
FAV Enter favorite channels
MAIL Enter Email APP
INFO Show current program info
Time Shift Activate time shift function
REC Enter PVR recording function
PLAY Play/Pause
REW FR
FWD FF
