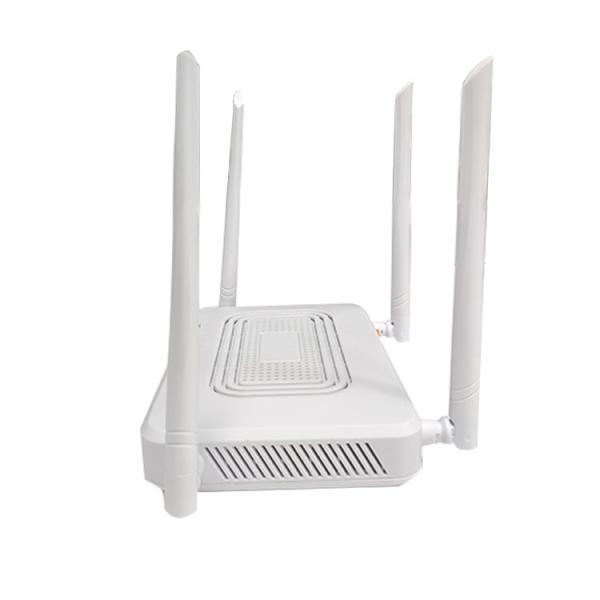

GPON And EPON Dual Mode HGU 4T4R XPON FTTH ONU 2GE FTX POTS TEL WIFI AC 2.4G 5G
GPON And EPON Dual Mode HGU 4T4R XPON FTTH ONU 2GE FTX POTS TEL WIFI AC 2.4G 5G
Specifications
Brand Name :
JiZhong
Model Number :
PTF2262Q
Certification :
ISO9001,WIFI,CE,RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per Month
Delivery Time :
Depends
Packaging Details :
Outer Box Size:37x35x27CM, weight:6Kg per carton Qtys: 10pcs per carton
Product Name :
XPON FTTH ONU
Chips :
Realtek
External Antennas :
4T4R
POTS :
Support
Frequency :
2.4GHz/5G
Operation :
PPPOE/DHCP proxy test
Size :
250*225*50mm
Gross Weight :
0.56KG
Power Plug :
EU/US/AU
Description

GPON And EPON HGU 4T4R XPON FTTH ONU 2GE FTX VOIP TEL WIFI AC 2.4G 5G

Features:

  • Support NAT, Firewall function
  • Support remote software upgrade
  • HGU ONU, bridging and routing modes can be set
  • Dual mode ONU compatible with popular EPON and GPON OLT
  • Support loop detection, IGMP, IGMP snooping
  • 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
  • Support port speed, support for storm suppression
  • Support 802.11a/b/g/n/ac WiFi(4T4R), rate up to 1.167Gbps
  • Support No-auth, WEP, WPA-PSK and WPA2-PSK
  • Support Telnet, CLI, OMCI/OAM /TR069 and Web management
  • POTS function support SIP protocol

PTF2262Q is 2GE+1POTS+WiFi (4T4R) XPON(GPON and EPON dual mode) Home gateway ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.It can also be applied to a wide temperature environment, and also has a firewall function.

Technical Specification

Items Unit Specifications
Product Name GPON And EPON Dual Mode HGU 4T4R XPON FTTH ONU 2GE FTX POTS TEL WIFI AC 2.4G 5G
PON standard. EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM
Speed Gbps GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps.
Wavelength nm Tx1310, Rx 1490
Interface data

2GE 10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Wireless Compliant with IEEE802.11 a/b/g/n/ac WiFi, 4T4R external antenna, 2.4GHz Operating frequency: 2.400-2.483GHz5.0GHz Operating frequency: 5.150-5.825GHzSupport MIMO, rate up to 1.167Gbps
POTS 1 x RJ11 connectorsSupport: G.711A/G.711U/G.723/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay
Indicator LED POWER, LOS, PON, WAN, LAN1, LAN2
Operating condition ℃ Operating temp: -5 ~ +55
Storing condition ℃ Storing temp: -30 ~ +60
Humidity % 10~90(non-condensing)
Power supply V DC 12V,1.0A adapter
Power consumption W ≤10
Dimension mm 178mm×120mm×30mm(L×W×H)
Net weight Kg 0.36

Packing

GPON And EPON Dual Mode HGU 4T4R XPON FTTH ONU 2GE FTX POTS TEL WIFI AC 2.4G 5G

Description Quantity Weight Carton Size
Shipping packaging 1pcs/ctn 0.56kg/ctn 250*225*50mm
20pcs/ctn 11.3kg/ctn 535*460*270mm
