Free To Air DVB-C HEVC H.265 Digital TV Set Top Box
Free To Air DVB-C HEVC H.265 Digital TV Set Top Box
Free To Air DVB-C HEVC H.265 Digital TV Set Top Box
Free To Air DVB-C HEVC H.265 Digital TV Set Top Box
Specifications
Brand Name :
JiZhong
Model Number :
DCR-3321
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiatable
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
5 work days
Packaging Details :
10pcs for each carton; Weight: 0.5Kg for small box;
Name: :
free to air set top box
Input frequency: :
47~867MHz
Chip: :
M88CC8201
Channel standard: :
DVB-C EN300-429,ITU J83 A/C
Video standard: :
HEVC,H.265,H.264, H.263, MPEG-2, MPEG-4, AVS, AVS+,VC1
Resolution: :
NTSC 480i,PAL576i,480p,576p,720p,1080i/p
Audio decoding: :
MPEG-1/2 Layer I/II/III, Dolby AC3/AC3+ (option)
CA card: :
support big card
Description

Free To Air DVB-C Digital TV Set Top Box With RF Output

Model NO: DCR-3321

Set Top Box Description:

* Adopt advanced QAM demodulation/MPEG-2/MPEG-4/H.264/H.265/AVS/AVS+decode technology;

* Support multiple conditonal Acess system encoding way, EPG and advertisement business;

* Support PVR reservation,record and decode function;

* High efficient user experience,brings more convenience and humanization;

Set Top Box Features:

* Completely compliant wiht the standard of DVB-C/MPEG/H.264/H.265/AVS/AVS+;

* Support multiple star QAM modulation (16/32/64/128/256QAM);

* Support multiple mainstrean CA conditional receiver system;

* Support EPG and program reservation management and EPG advertisement business;

Set Top Box Specifications:

Main Specifications:
Model Number DCR-3321
Chips M88CC8201,(High-performance dual MIPS CPU architecture)
DDR 128MB
FLASH 8MB
Tuner M88TC6800
Tuner:
Input Frequency 47~858MHZ
Channel decode
Standard DVB-C EN300-429,ITU J83 A/C
Demodulation 16 QAM,32 QAM,64 QAM,128 QAM,256QAM
Symbol rate 3.6~6.952MS/s
Video Decode:
Standard HEVC,H.265,H.264, H.263, MPEG-2, MPEG-4, AVS, AVS+,VC1
Video format 4:3,16:9
Resolution NTSC 480i,PAL576i,480p,576p,720p,1080i/p
Audio Decode
Audio decode MPEG-1/2 Layer I/II/III, Dolby AC3/AC3+ (option)
Audio Mode Left/right/stereo
Front Panel:
LED Display Power Indicator
clock LED indicator
Infraed receiver 38KHz,NEC Symbology

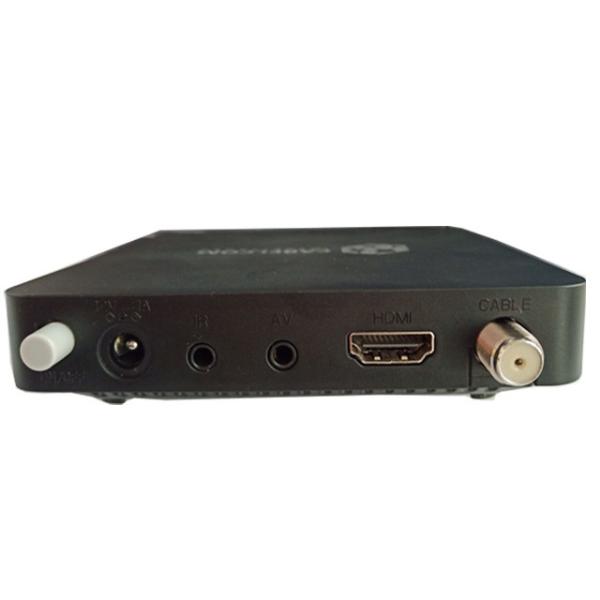

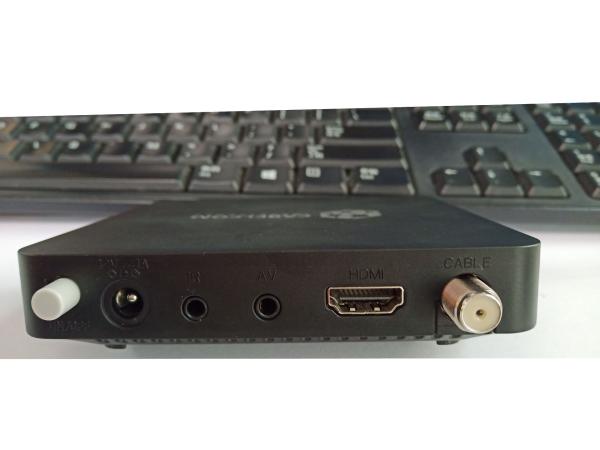

Interface:
Power on/off Self-locking switch
DC 2.54m DC
IR IR loop out(Adopt earphone interface)
Audio/Video output HDMI HD
Left/right//CVBS
RF input British F female
USB USB2.0,TYPE-A
CA Support big card
Power supply:
voltage 12V/1A
Power consumption 12W(MAX)
Product details:
Free To Air DVB-C HEVC H.265 Digital TV Set Top Box
Free To Air DVB-C HEVC H.265 Digital TV Set Top BoxFree To Air DVB-C HEVC H.265 Digital TV Set Top BoxFree To Air DVB-C HEVC H.265 Digital TV Set Top Box
