FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
Specifications
Brand Name :
JIZHONG
Model Number :
JZOTH1510-BI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
300PCS/Month
Delivery Time :
Depends
Packaging Details :
50pcs/CTN
Product Type :
FTTH CATV 4mW ~ 10mW 1550nm MINI Optical Transmitter
Frequency :
47-1000MHz
Color :
Golden/Blue
Wavelength :
1550nm+/-20nm
Power output :
10mW
CSO :
60dB
CTN :
65dB
Power Consumption :
<8W
Dimension :
140*90*26mm
Description

FTTH CATV 4mW ~ 10mW 1550nm MINI Optical Transmitter With Female F Type Connector

Product Overview

JZOTH series optical transmitter is specially designed for FTTx CATV network,aimed for long-distance optical fiber transmission of Tv image signal, digital TV signal, telephone speech signal and date signal. This series of product adopt imported advanced DFB laser with high performance and RF power automatic processing technology developed by our company as well as In-built perfect micro computer automatic monitored control system guarantees excellent performance indicator of the machine.

Main Features

  • With 5~860MHz/1000MHz optimized circuit design, user can use frequency bandwidth according to system customization.
  • With out-built power supply adapter, it is convenient to maintain.
  • It adopts international famous DFB laser with high performance, narrow emission, excellent linearity and stable output power. In addition, it adopts RF power automatic processing technology researched by our company in RF driving part, which achieves automatic processing driving level power according to level of input RF signal and channel number(15~84 channels) and makes CSO, CTB, C/N optimum. Machine performance is perfect.
  • It adopts advanced CPU processing and perfect automatic monitored system circuit matched, which can always precisely monitors all kinds of working situation of laser, so that it guarantees stable optical output power and prolongs service life of laser.
  • Low power loss design(less Then10W) and low working temperature reduces the burden of heat dissipation system, and it is more environmental.

Technical Specification

Item Unit Technical spec.
Product Name FTTH CATV 4mW ~ 10mW 1550nm MINI Optical Transmitter With Female F Type Connector
Wavelength nm 1550±20
Laser type DFB laser
Optical modulation type Direct optical strength modulation
Optical connector type FC/APC or SC/APC
Frequency range MHz 47-862/1000
RF input level dBuV 72~82
Flatness in band dB ±0.75
RF input resistance 75
Input reflection loss dB ≥16
Link C/N dB ≥ 51
Link C/CSO dB ≥ 60
Link C/CTB dB ≥ 65
AGC control range dB ±5
MGC control range dB 0~10
Power supply pressure V DC12V/1A
Power loss W ≤ 8
Dimension mm 140 x 90 x 26

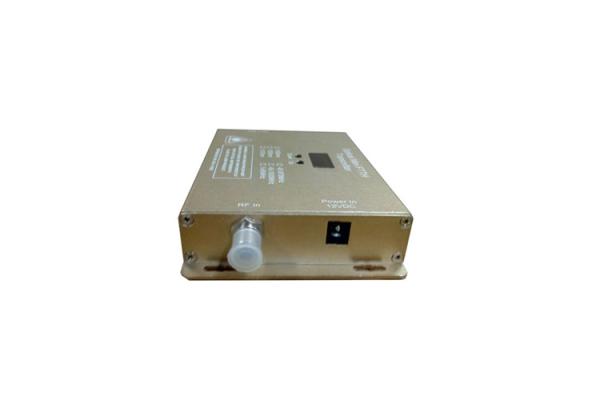

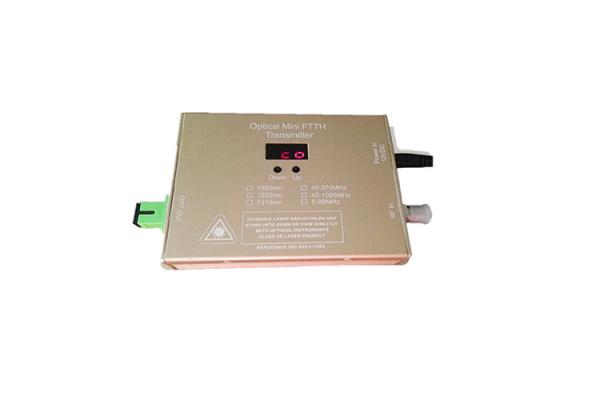

Product Picture

FTTH CATV 4mW ~ 10mW 1550nm Optical Transmitter With Female F Type Connector
