CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
Specifications
Brand Name :
JiZhong
Model Number :
JZEDFA
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Standard export packing
Wavelength :
1535~1565nm
Output optical power :
13~24dBm
Input Optical Power :
-10~+10dBm
Optical reflection loss :
>60dB
Power supply :
220V AC or 48V DC
RF level :
75~90dBuV
Power consumption :
<24W
Dimension :
483x400x44mm
Description

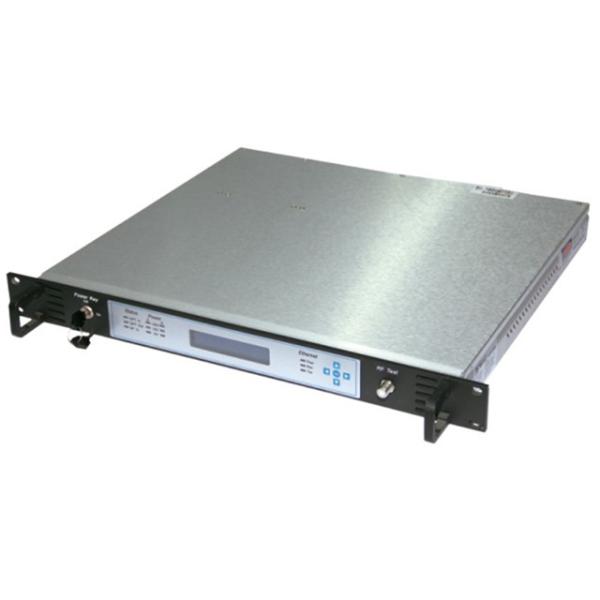

CATV 19'' 1U Rack 1550nm EDFA with JDSU Pump Laser And Double Power Supply

optical Amplifier Features:
1) optical amplifier which use imported erbium-doped fiber, and high steady imported 980N.m pump laser or 980nm cooperating 1480nm pump (double pump structure)

2) Microprocessor automatic control circuit makes both pumps work at best state

3) Better dependability and stability

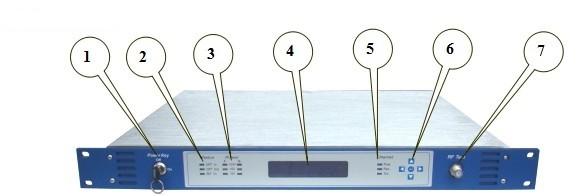

4) Front panel blue VFD display, shows various main work status parameters

5) Various output power for selection

6) RS485 control interface can realize network management status monitor

7) 9" 1U high-standard framework type installation

8) With advanced circuit design, reasonable structure, slap-up material and high index, this machine is suitable for using at large or middle-size network

Technical Parameters:

Item Unit Technique Parameter Remark
Operating Wideband nm 1535 - 1565
Input Optic Power dBm -3 - +10 Input Optical Power 0 - +5dBm
Output Optic Power dBm 13 - 25
Output Power stability dBm ±0.5
Noise Figure dB ≤ 5.0 Output Optical Power 0dBm
Return Loss Input End dB ≥ 45
Output End dB ≥ 45
Power of Pump leak Input End dBm ≤ -30
Output End dBm ≤ -30
(C/N) dB ≥ 52
(C/CTB) dB ≥ 63
(C/CSO) dB ≥ 63
Connector Type FC/APC or SC/APC
Supply Voltage V AC160V - 250V (50 Hz) it can be set with Dual-power hot-backup supply
Operating Temperature °C -5 - +55
Max Relative Humidity % Max95%No Condensation
Storage Temperature °C -30 - +70
Max Relative Humidity for Storage % Max95%No Condensation
Dimension mm 483(W)x340(L)x44(H)

CATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power SupplyCATV 19'' 1U Rack 1550nm EDFA With JDSU Pump Laser And Double Power Supply
