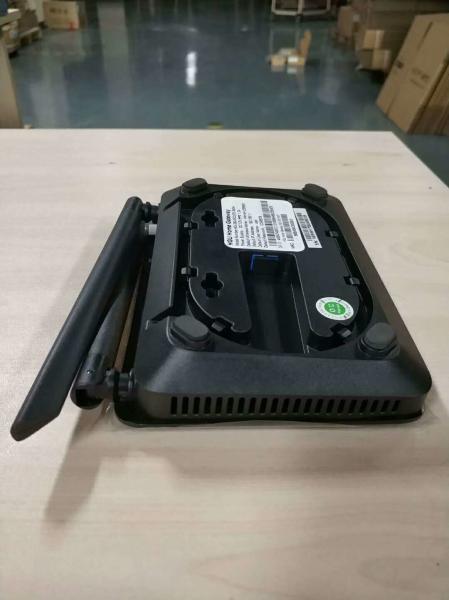

GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU
Specifications
Brand Name :
JiZhong
Model Number :
JZOG-6404
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Standard export package
WiFi Frequency :
2.412 ~ 2.472 GHz
Channel :
13*Channel, configurable to meet the standard of USA, Canada, Japan and China
Modulation :
DSSS , CCK and OFDM
Coding :
BPSK, QPSK, 16QAM and 64QAM
Optical AGC range :
-15 to -5 dBm
Wavelength :
1310/1550 +/- 10nm
Optical return loss :
>45dB
Size: :
175x120x32mm
Description

GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE/1GE3FE+CATV+VOIP EPON ONU

Features:
1) xPON adaptive GPON and EPON mode supported
2) Protocol: GPON- G.984/ G.983 code ; EPON- 802.3-2005/CTC support G.711, G.722, G.729 and T.38 coding and encoding protocol
3) support VoIP, wifi bgn or CATV(see detailed model function)
4) support L2/L3 multicast forwardingL2 bridge forwarding L3 router forwarding NAT/NAPT
5) support flexible traffic classification;
6) support HQoS (Hiberarchy Quality of Service)
CATV Specification
· Turn on/off RF output remotely
· Wavelength:1310/1550 +/- 10nm
· Optical return loss:>45dB
· Input optical power:-20dBm~+2dBm
· RF frequency:87MHz~1000MHz
· RF output level:70~80dBuV
· Optical AGC range:-15 to -5 dBm

ONT Specification
Item Parameter
Interface PON Interface 1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM
User Interface 3*10/100M Auto-negotiation;1*10/100/1000
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
1 RF output
Female F-Type Connector
Power Interface
12V DC Power supply
Performance Parameters PON Optical Parameter Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1~4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125um single-mode fiber
Data Transmission Parameter PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 100Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
Business
Capability		 Layer 2 wire speed switching
Support VLAN TAG/UNTAG,VLAN conversion
Support Port-based speed limitation
Support Priority classification
Support storm control of broadcast
Support link detection
Network Management Management Mode Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet
Local management
Management
Function		 Status monitor, Configuration management, Alarm management,
Log management
Indicator LED Indicator PWR, SYS,PON, LAN1~LAN4, CATV,WIFI
Physical Features Shell Plastic casing
Power External 12V 1A AC/DC power supply adapter
Power consumption: <5.5W
Dimension and Weight Item Dimension:175mm(L) x 120mm(W) x 32mm (H)
Item weight:0.4kg
Environmental
Specifications		 Operating temperature: 0 to 50 ºC
Storage temperature: -40 to 85 ºC
Operating humidity: 10% to 90% (Non-condensing)
Storage humidity: 10% to 90% (Non-condensing)
WIFI Specification

Performance parameters		 Operating Mode Router or bridge
Throughput IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 135Mbps
Frequency 2.412 ~ 2.472 GHz
Channel 13*Channel, configurable to meet the standard of USA, Canada, Japan and China
Modulation DSSS , CCK and OFDM
Coding BPSK, QPSK, 16QAM and 64QAM
RF receive sensitivity 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
RF output level 802.11b: 16.5 ±1dBm
802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
Encryption Mode 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
