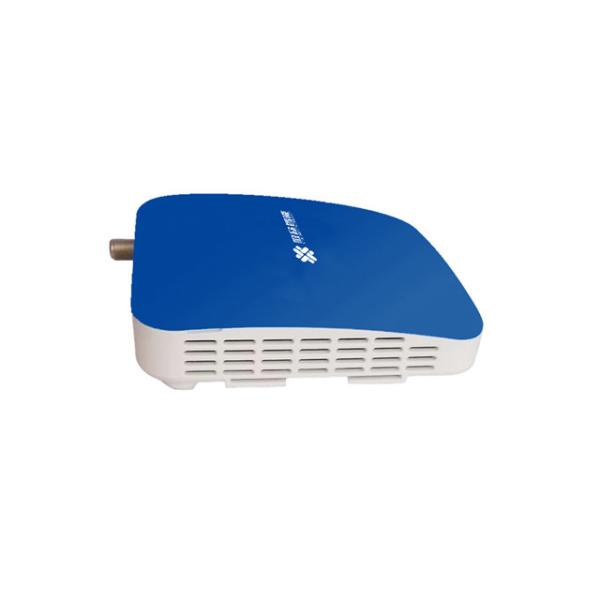

HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
Specifications
Brand Name :
JiZhong
Model Number :
DCR-860J
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Carton size:415x350x243mm; Carton numbers:10pcs/ per carton;
Product name :
DVBC set top box
Support Resolution :
1920 x 1080
USB: :
1xUSB2.0
HDMI :
1xHDMI1.3
case material :
Plastic
Power supply :
DC:12V/0.8A
Description

HD DVB-C MPEG-4 Box Free To Air HD Set Top Box Decoding MPEG 2/4, AAC,AC3 HD DVBC Set Top Box For Cable

Brief description:

Digital cable TV set top box is fully compliant with MPEG-2 Digital &DVB,supporting EPG, multi-language; CVBS Video & Audio output via RCA.

Specifications:

Chipset:
Flash Memory 8MB
RAM Memory 128MB
Tuner
Frequency Range 47~862MHz
Demodulation 16/32/64/128/256QAM
Input Impedance 75Ω
Symbol Rate 3.6~6.952MS/s
Video Decoding
Video decoding MPEG-2, MPEG-4,H.264/AVS/AVS+
Video aspect ratio 16:9 and 4:3
Video output 1080p/1080i/720p/576p
Audio Decoding
Audio Decoding MPEG-1 , MPEG-2, AAC,AC3,Dolby Digital plus.
Audio Mode left CH+, Right CH-,Stereo
Sampling Rate 32KHz, 44.1KHz and 48KHz
Front panel
LED Indicator ORANGE/RED: Power ON/standby; YELLOW: Signal lock;
LED display 4 Digital LED Indicator (VFD is available base on customization)
IR 38KHz
Buttons 6 X buttons ( MENU, CH+, CH-, VOL+, VOL-, OK)
Smartcard Reader 1 x smart card slot
Rear Panel
Antenna IN F-type Female
LOOP OUT 3.5mm plug hole
USB 1 x USB 2.0
HDMI 1 x HDMI 1.3
Analog RCA 1 x CVBS, 1 x AUDIO LEFT, 1 x AUDIO RIGHT
Power Supply Socket DC 12V/0.8A
Power switch ON/OFF

Smart card sim slot:

HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution

Accessories for TV Set Top Box:

HD DVB-C Free To Air Mpeg4 Set Top Box For Cable TV Support 1920 X 1080 Resolution
