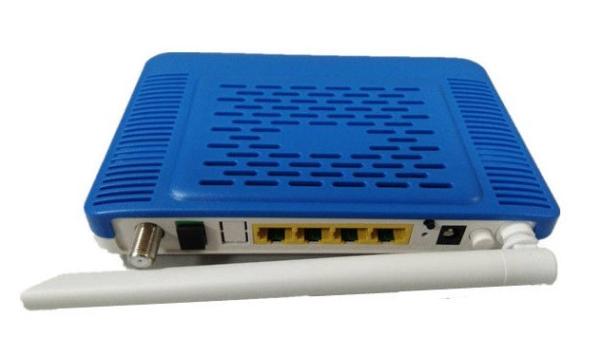

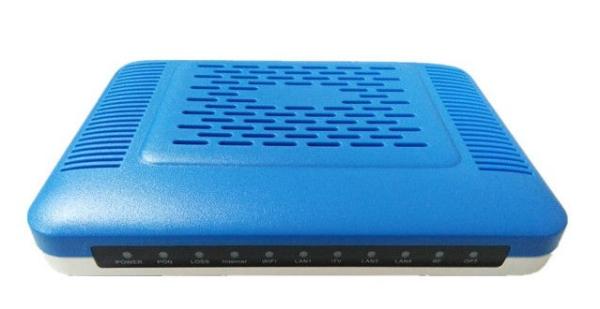

Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power
Specifications
Brand Name :
Jizhong
Model Number :
JZOG-6404
Certification :
CE
Place of Origin :
XI'AN
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union,Credit
Supply Ability :
1000/Pcs/Month
Delivery Time :
3-40days
Packaging Details :
Paper carton
Product Name :
FTTH GPON ONU
Chipest :
Soc
Color :
Black/Blue
WIFI :
2*2
Power :
DC 12V
USB :
1
CATV :
Yes
Material :
Plastic
Description

FTTH 1GE +3FE+WIFI+CATV Ports GPON EPON ONT ONU Compatible with Hua-wei

ONU Specification

Feature

1) xPON adaptive GPON and EPON mode supported
2) Protocol: GPON- G.984/ G.983 code ; EPON- 802.3-2005/CTC support G.711, G.722, G.729 and T.38 coding and encoding protocol
3) Support VoIP, wifi bgn or CATV(see detailed model function)
4) Support L2/L3 multicast forwardingL2 bridge forwarding L3 router forwarding NAT/NAPT
5) Support flexible traffic classification;
6) Support HQoS (Hiberarchy Quality of Service)
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power

CATV Specification

· Turn on/off RF output remotely
· Wavelength:1310/1550 +/- 10nm
· Optical return loss:>45dB
· Input optical power:-20dBm~+2dBm
· RF frequency:87MHz~1000MHz
· RF output level:70~80dBuV
· Optical AGC range:-15 to -5 dBm
Soc Chipest FTTH ONU 1GE +3FE+WIFI+CATV Ports GPON EPON ONT DC 12V Power

WIFI Specification


Performance parameters		 Operating Mode Router or bridge
Throughput IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 135Mbps
Frequency 2.412 ~ 2.472 GHz
Channel 13*Channel, configurable to meet the standard of USA, Canada, Japan and China
Modulation DSSS , CCK and OFDM
Coding BPSK, QPSK, 16QAM and 64QAM
RF receive sensitivity 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
RF output lever 802.11b: 16.5 ±1dBm
802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
Encryption Mode 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

Factory overview

Established in 1999; Stock code:835316;
A team of 30(Thirty)Experienced hardware and software engieeners;
Membership of SARFT cable digital TV application technology laboratory;

Imported production line from Fuji, Samung, Agilent,Tektronix;
Dolby certified.
