Specifications
Brand Name :
JiZhong
Model Number :
JZ-CX0101R001
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 per month
Delivery Time :
5 work days
Packaging Details :
Standard export package
Product name: :
1GE CATV XPON ONU
Connector: :
SC/APC
Upstream: :
1310nm
Downstream:: :
1490nm
Transmission distance: :
20KM
LAV interface: :
RJ45
RF, optical power : :
+2~-18dBm
RF frequency range: :
47~1000MHz
Description

Realtek Chipset 1GE CATV FTTH ONU Designed AS HGU Support IPv4 IPv6 dual stack FTTH ONU

Model NO:JZ-CX0101R001

Product Description:

* 1GE + CATV is designed as HGU in different FTTH solutions, carrier-class, FTTH application provides data service access;

* 1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

* 1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.

* 1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah;

* 1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah;

* 1GE+CATV is designed by Realtek chipset 9601D;
Key Features:

*Supports Dual Mode (can access GPON/EPON OLT).
*Supports SFU and HGU of EPON CTC 3.0 standard
*Supports GPON G.984/G.988 standards
*Support CATV interface for Video Service and remote control by Major OLT
*Support NAT, Firewall function.
*Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
*Support port mode of VLAN configuration
*Support LAN IP and DHCP Server configuration
*Support WEB Management
*Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode

*Support IPv4/IPv6 dual stack

*Support IGMP transparent/snooping/proxy
*In compliant with IEEE802.3ah standard

*Compatible with popular OLT (HW, ZTE, FiberHome...)
Technical Parameters:
Technical Item Parameters
PON interface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector
CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED 6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN
Push-Button 2, for Function of Power on/off, Reset
Operating condition

Temperature : 0℃～50℃

Humidity :10%～90%(non-condensing)
Storing Condition

Temperature : -40℃～+60℃

Humidity :10%～90%(non-condensing)
Power supply DC 12V/1A
Power Consumption <3W
Net Weight <0.2kg

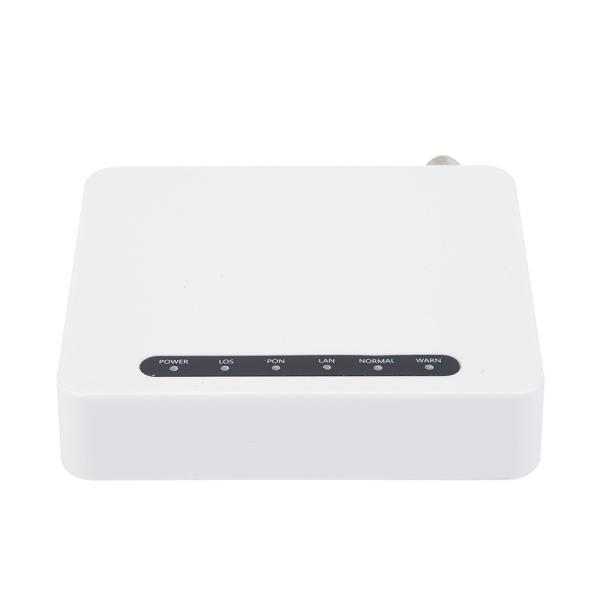

Picture display of FTTH ONU:

Realtek Chipset 1GE CATV FTTH ONU Designed AS HGU Support IPv4 IPv6 Dual Stack FTTH ONU

Realtek Chipset 1GE CATV FTTH ONU Designed AS HGU Support IPv4 IPv6 Dual Stack FTTH ONU

Panel lights and Introduction:

Pilot Status Description
POWER On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN On Port is connected properly (LINK).
Blink Port is sending or/and receiving data (ACT).
Off Port connection exception or not connected.
NORMAL On Input optical power is between -18dBm and 2dBm
Off Input optical power is higher than 2dBm or lower than -18dBm
WARN On Input optical power is higher than 2dBm or lower than -18dBm
Off Input optical power is between -18dBm and 2dBm

Applications:

Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)

Typical Service:Broadband Internet access, IPTV, VOD, CATV and Video Surveillance.

Realtek Chipset 1GE CATV FTTH ONU Designed AS HGU Support IPv4 IPv6 Dual Stack FTTH ONU
