Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Specifications
Brand Name :
JiZhong
Model Number :
JZWH-36E
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 per month
Delivery Time :
5 work days
Packaging Details :
Standard export package
Product name: :
Digital TV Signal Level Meter
Frequency range: :
47~870MHz
Digital Average Power: :
30dBuV~115dBuV
Symbol rate: :
1ms/S~7ms/S
MER: :
20dB~40dB
BER: :
R-S Before 10^-3~10^-9
Description

Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode

Model NO:JZWH-36E

Product Description:
Digital TV signal system can accurately detect and measure analog signal. It features super long power supply and is very suitable for trunk line network maintenance as well as maintenance carried out by client. Excellent Cost Performance is as its leading feature.

Key Features:

* One key change between frequency and channel, easily during operating.

* Accurate QAM performance index—average power; MER; BER.

* Support many kinds of DVB mode:16/32/64/128/256QAM.

* Wide bit rate setting: 1MS/S---7MS/S

* Built-in Chinese TV channel list, fit for any network detecting.

* All-around analog TV index detecting---level; V/A; C/N; slope and trunk line.

* Quick charging enables trouble-free operation more than 6 hours.
Performance JZWH-36EA JZWH-36EB JZWH-36EC JZWH-36ED
Digital DVB measure index Frequency range 47~870MHz 5~870MHz 47-870MHz 5~870MHz
supporting 16/32/64/128/256QAM
Digital average power 30dBuV~115dBuV
Accuracy ±1.5dB
Band width Can be set
Symbol rate 1MS/S~7MS/S
MER 20dB~40dB
Accuracy ±2dB
BER R~S before 10-3~10-9
Frequency spectrum Frequency sweep width 6MHz, 12MHz, 60MHz
Others testing Items (C/N) slope measuring; trunk line measuring.
Analog TV measure index Frequency 47~870MHz 5~870MHz 47~870MHz 5~870MHz
Level 30dBuV~120dBuV
Accuracy ±1.5dB
Input impedance 75Ω
(C/N) Signal input range >70dBuV
Measuring accuracy ±2 dBuV
Voltage measuring Input range 10~99V (AC/DC)
Measuring accuracy ±2V
Resolution ratio 0.1V
Others Dimensions 210mmx95mmx48mm
Gross weight 0.6Kg
Working temperature -10℃~45℃
Audio output Built-in loudspeaker, numerical controllable
Battery Built-in chargeable Polymer Lithium lon Batteries

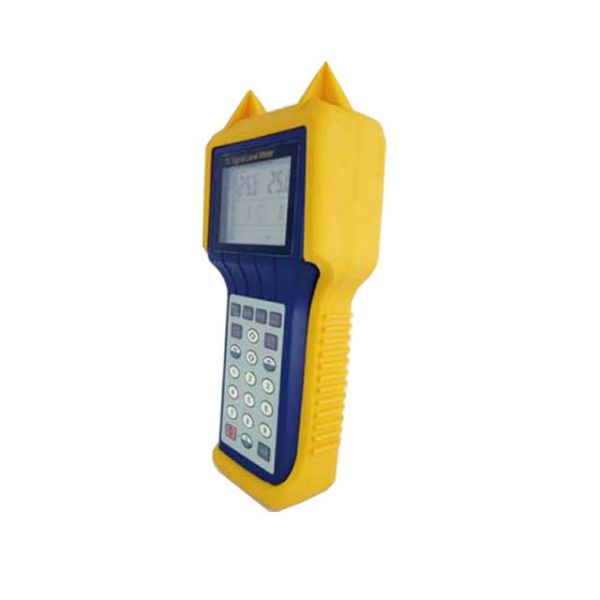

Picture display of Digital TV Signal Level Meter Tester :

Optical Test Instruments 47~870MHz Digital TV Signal Level Meter Tester Supported All Kinds of DVB Mode
Product Model:
S/N Product name Model NO Configuration
1 Digital TV Signal Level Meter JZWH-36S 5~870MHz, planisphere, Frequency spectrum, Average power, MER, BER
2 JZWH-36EB+ 5~870MHz, planisphere, Frequency spectrum, Average power, MER, BER, Lithium battery.
3 JZWH-36EB 5~870MHz, Frequency spectrum, average power, MER, BER, Lithium battery.
4 JZWH-36EC 47~870MHz, average power, MER, BER, Lithium battery.
5 JZWH-36ED 5~870MHz, Average power, MER, BER, Lithium battery.
