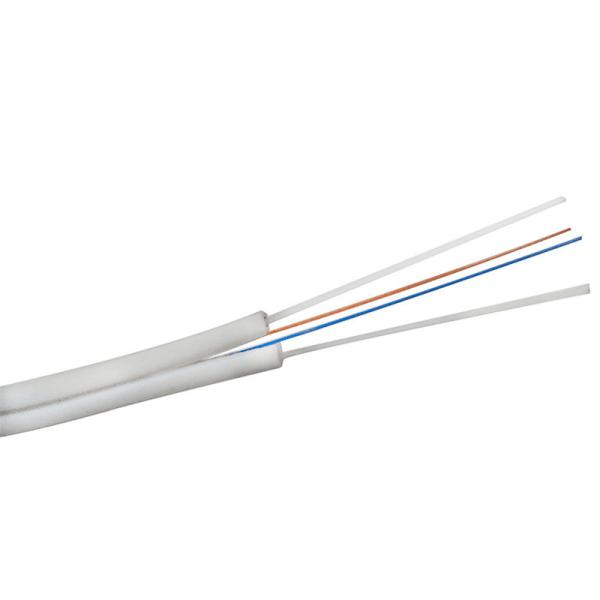

ISO9001 PVC OFNR FTTH Drop Fiber Optic Cable For CATV
ISO9001 PVC OFNR FTTH Drop Fiber Optic Cable For CATV
ISO9001 PVC OFNR FTTH Drop Fiber Optic Cable For CATV
ISO9001 PVC OFNR FTTH Drop Fiber Optic Cable For CATV
Specifications
Brand Name :
SUNET or OEM
Model Number :
Fiber Optic Transceivers
Certification :
ISO9001,ISO14001
Place of Origin :
Qingdao,China
MOQ :
1piece
Price :
USD0.02-5per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000piece per week
Delivery Time :
5-8 days
Packaging Details :
one piece in one box
Fiber type :
G652D/G657A1/G657A2
Strength member :
FRP/KFRP/Steel wire
Fiber count :
1/2/4/6/8/12 Core
Jacket material :
LSZH/PVC
Product name :
indoor/outdoor fiber optical cable patch cord
Color :
white/black,Customized
Length :
0.5m/1m/2m/5m/customized
Application :
FTTH,Fiber optic cable fittings
Description

G652D LSZH indoor FTTH Drop Fiber Optic Cable Patch Cord

Description:

1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length
2. The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
3. All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.

Features

1. Cost effective solution for in house termination.
2. Low insertion loss and added loss.

3. Height of attenuation.
4. The material in the jumpel cable are all-weather and UV-resistant.
5. Mechanical performance: IEC 61754-4 standard.
6. RoHS and REACH materials compliant.
7. Cable diameter Range: 2.0*3.0mm, 2.0*5.0mm..

Application:

CATV

LAN and Access Network

Telecom, Gigabit Data Network

Testing and Medical equipments

Industry and Military applications

Specifications

Items

Specifications

Fiber Count

2

Colored Coating Fiber

Dimension

250mm±15μm

Color

Blue,Orange

Tight buffer

0.9mm Tight buffer no jelly

Supporting messenger wire

Dimension

0.33* 7

Material

Galvanized steel wire strands

Strength member

Dimension

0.45mm±0.10

Material

FRP (or steel wire)

Outer Jacket

Material

PVC

Color

Black

Cable Diameter dimensions

2.0( Height) × 5.3 W ± 0.1 mm(width)

Fiber Count

Cable Diameter
(mm)

Cable Weight
(kg/km)

Tensile Strength

(N/100mm)

Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

1-4

5.2*2.0

18

600

300

2200

1000

6-12

3.0*9.0

27

1200

600

1100

500
