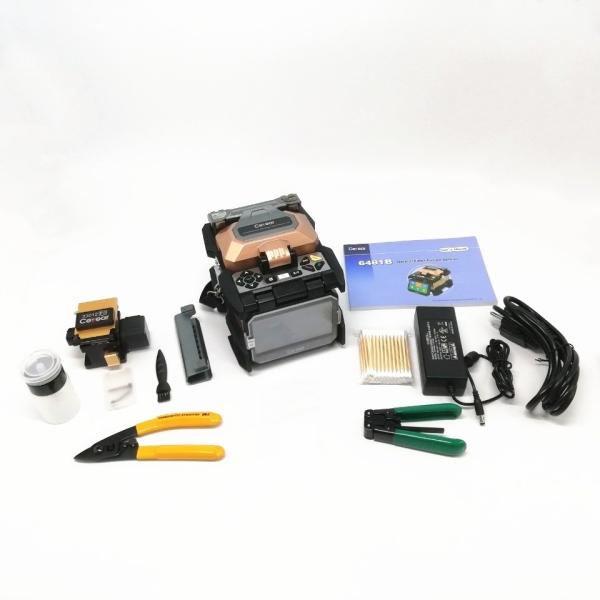

AV6481 DS Automatic Optical Fiber Fusion Splicer , Signal Fire Fusion Splicer
AV6481 DS Automatic Optical Fiber Fusion Splicer , Signal Fire Fusion Splicer
AV6481 DS Automatic Optical Fiber Fusion Splicer , Signal Fire Fusion Splicer
AV6481 DS Automatic Optical Fiber Fusion Splicer , Signal Fire Fusion Splicer
Specifications
Brand Name :
SUNET/OEM
Model Number :
SNT-AV6481
Certification :
ISO9001 ISO14001
Place of Origin :
Qingdao,China
MOQ :
1 pcs
Price :
USD 1065-1290/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
3-8 work days
Packaging Details :
1PCS Fiber Optic Fusion Splicer Kits in One Carton
Warranty :
18 Month
Focus mode :
Four/Six motors Auto focus
Applicable fibers :
SM / MM / DS / NZDS
Splicing time :
7 Seconds
Product name :
Fusion Splicer Machine
Weight :
6KG(Include battery)
Dimension :
122(D)*122(W)*130(H)mm
Color :
Green, Gold
Description

4/6 Motor Automatic Fusion AV6481 Fiber Optic Splicer Machine


Description:

SNT-AV6481 fiber optic fusion splicer machine implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively.
This is a perfect splicer tool kit in the fiber optic fusion and maintenance.



Features:

1.Precise fiber core alignment, ultra-low fiber fusion splicing consumption
2. 7s fast fusion splicing, 18s highly efficient heating.
3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
4. 300 groups of fusion splicing modes, 100 groups of heating modes
5. 10000 groups of fusion records, 64 images storage
6. Ceramic presser foot, ceramic V-block, all-in-one fixture
7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
8. USB and SD card interfaces, U-disk automatic software upgrade
9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles

Application:

1.FTTH FTTB FTTX Network


​Parameters:

Model AV6481
Alignment method Precise core alignment and cladding alignment

Applicable fibers		 Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter Cladding:80~150μm, coating layer: 0.1~3mm

Cutting length		 5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical
fiber diameter:0.25~3mm)
Fusion splicing consum ption(typical value)
0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF)
Return loss Better than 60dB
Fusion splicing time
(typical value)
7s
Heating time (typical
value)		 18s
Pulling force test 1.96~2.25N
Thermal shrinkage tube 60mm, 40mm and a series of thermal shrinkage tubes
Graphical display High-performance 4.3 inch LCD
Magnification time 320 times/88 times
Fusion splicing record 10000 groups

Battery capacity		 11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times
Battery service life Cycle charging times reach 300~500, can be replaced by customers
Electrode service life Typical value is 4000 times, can be replaced by customers
Construction lighting Built-in lights with high-brightness and wide lighting area
Working environment Temp:-10~50ºC;hum: 0~95%RH,height above sea level:0~6000m
Operation interfaces GUI graphical operation interfaces
External power AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
External port USB / SD
Dimensions 120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
Weight 1.59kg(host engine),0.37kg(battery
