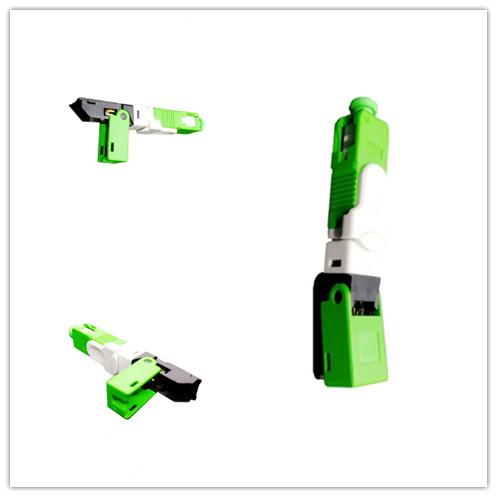

250um FTTH Low Insert Fiber Optic Quick Connectors
250um FTTH Low Insert Fiber Optic Quick Connectors
250um FTTH Low Insert Fiber Optic Quick Connectors
250um FTTH Low Insert Fiber Optic Quick Connectors
Specifications
Brand Name :
SUNET / OEM
Model Number :
SC APC
Certification :
ISO9001 / ISO14001
Place of Origin :
Qingdao , China
MOQ :
1 piece
Price :
USD 0.1-0.5 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 PCS / Month
Delivery Time :
5 - 8 Workdays
Packaging Details :
Blister box packing
Connector :
Sc / Apc
Insertion Loss :
≤ 0.3 dB
Fiber Type :
SM / MM
Fiber Cable Type :
3x2mm Flat cable, 2.0mm 3.0mm cable
Application :
FTTH FTTB FTTX Network
Lead time :
3-7working days
Return loss :
> 55db
Operating temperature :
-40~75, -40°C ~ +80°C, -40 to +85 degree, -45 to +85
Description

FTTH SC / APC ESC250D Fiber Optic Fast Connector

SC / APC Connector Description

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

SC / APC Connector ESC250D Feature

1. Quickly assembly connetor

2. High return loss,low insert

3. Cost effective portable

4. Install quickly

5. Reliable and superior optical performance

SC / APC Connector ESC250D Application

1. Patch panels

2. Distribution frames

3. Maintenance or emergency restoration of fiber networks

4. FTTH Outlets

5. Connection at the desk for LAN environments

SC / APC Connector ESC250D Spectification

Item

Parameter

Cable Scope

3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable

Size:

52*9*8.1mm

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

250μm

Mode

SM

Operation Time

about 15s(exclude fiber presetting)

Insertion Loss

≤ 0.3dB(1310nm & 1550nm)

Return Loss

≥ 50dB for UPC, ≥ 55dB for APC

Success Rate

>98%

Reusable Times

>10 times

Tighten Strength of Naked Fiber

>5 N

Tensile Strength

>50 N

Temperature

-40 ~ +85 C

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Mechanical Durability(500 times)

IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

IL ≤ 0.3dB
