ABS Box Yellow 55dB 1490nm Fiber Optic FBT Coupler
ABS Box Yellow 55dB 1490nm Fiber Optic FBT Coupler
ABS Box Yellow 55dB 1490nm Fiber Optic FBT Coupler
ABS Box Yellow 55dB 1490nm Fiber Optic FBT Coupler
Specifications
Brand Name :
SUNET or OEM
Model Number :
Steel Tube Type
Certification :
ISO9001,ISO14001
Place of Origin :
Qingdao,China
MOQ :
1piece
Price :
USD1-3 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000piece per week
Delivery Time :
5-8 days
Packaging Details :
one piece in one bag
product name :
1*2 Fiber Optic FBT Coupler
splitter type :
ABS Box
connector type :
Customized
wavelength :
1310/1490/1550nm
Insertion loss :
≤0.3dB
Return loss :
>=55dB
Color :
Yellow,aqua or Cusomized
Fiber count :
Simplex or Duplex
Application :
FTTH FTTB FTTX Network
Quality control :
100% test before shipping
Description

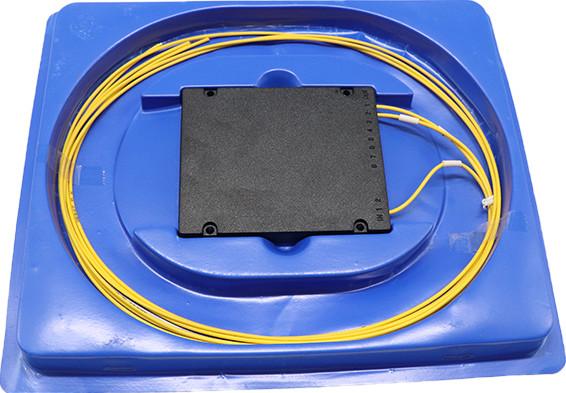

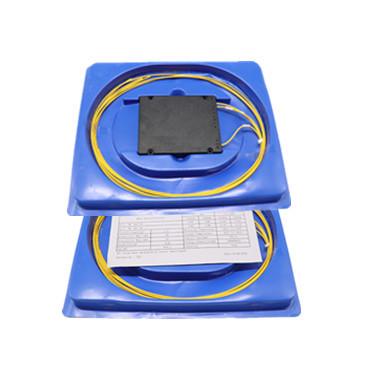

1*2 ABS Box Type Yellow 1310/1490/1550nm Fiber Optic FBT Coupler

Description

Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape Technology.
It features small size, high reliability ,cheap cost and good channel-to-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.
SUNET provides whole series of 1xN and 2xN spliiter products that are tailored for specific applications .All products meet GR-1209-CORE and GR-1221-CORE.
SUNET offers both tree and star type inline couplers /splitters.They provide a reliable solution to split/combine signals.The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers ,and from 2x2 to 2x32 for star couplers. Available in single,dual and triple wavelength windows(1310/1490/1550nm)

Feature

1. Low Excess loss
2. Low PDL
3. Environmentally stable
4. Good Thermal Stability

Application

1. Long-haul Telecommunications
2. CATV Systems & Fiber Optic Sensors
3. Local Area Network

Specification

Parameter

Unit
Wide Band Coupler
Dual Window Coupler
Multimode fiber Coupler
Grade
/
P
S
P
S
P
S
Operating Wavelength
nm
1310,1550or C+Band
1310and1550

850or1310 or

customer specified
Operating Bandwidth
nm
±40
±40
±40
Typical Excess Loss
dB
≤0.07
≤0.01
≤0.07
≤0.01
≤0.4
≤0.7
PDL
dB
≤0.1
≤0.15
≤0.15
≤0.2
≤0.1
≤0.15
Directivity
dB
≥55
