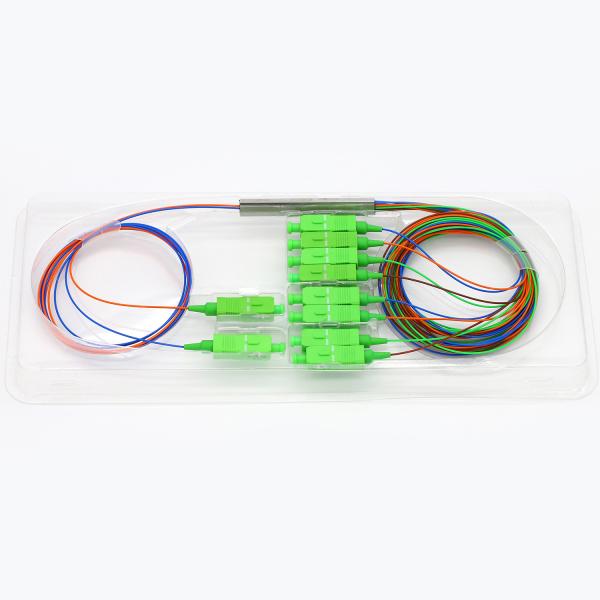

Steel Tube PVC G657A SC Connector Fiber Optic Coupler Splitter
Steel Tube PVC G657A SC Connector Fiber Optic Coupler Splitter
Steel Tube PVC G657A SC Connector Fiber Optic Coupler Splitter
Steel Tube PVC G657A SC Connector Fiber Optic Coupler Splitter
Specifications
Brand Name :
SUNET or OEM
Model Number :
Steel Tube Type
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1pcs
Price :
USD3-5/Pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5000000pcs per week
Delivery Time :
5-8 working day
Packaging Details :
One pcs in one plastic box/bag
Product Name :
fiber optic splitter
Type :
1x2 1x4 1x8 1x16 1x32
Fiber Type :
G657A
Application :
FTTH FTTB FTTX Network
Material :
PVC LSZH option
Connector Type :
FC/SC/LC/ST
Wavelength :
1260 to 1650nm
Cable Diameter :
0.9mm
Cable Length :
1m or customized
Color :
12 colors are available
Description

Steel Tube PVC G657A SC Connector Fiber Optic Coupler Splitter

PLC Splitter Description

1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). All products meet GR-1209-CORE and GR-1221-CORE requirements.

PLC Splitter Features

1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package

PLC Splitter Applications

1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber

PLC Splitter Specification

1xN PLC Splitter((Room temperature, including connector loss)

type

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength(nm)

1260-1650nm

Insertion loss(dB)

Max

4.1

7.5

10.7

13.9

17.2

20.6

Loss uniformity(dB)

Max

0.5

0.6

0.8

1.0

1.5

2.0

Return Loss(dB)

≥50

≥50

≥50

≥50

≥50

≥50

Polarization Dependent Loss(dB)

Max

0.2

0.2

0.3

0.3

0.3

0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Fiber Type

Corning smf-28e or customer designation

Wavelength Dependent Loss(dB)

Max

0.6

0.6

0.6

0.8

0.8

0.8

Temperature correlation loss-40～85℃(dB

Typical value

0.2

0.2

0.3

0.4

0.4

0.4

Max

0.5

0.5

0.5

0.5

0.5

0.5

Working Temperature(℃)

-40～85℃

Storage Temperature(℃)

-40～85℃

2xN PLC Splitter((Room temperature, including connector loss)

type

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength(nm)

1260-1650nm

Insertion loss(dB)

Max

4.3

7.8

11.1

14.4

17.7

20.7

Loss uniformity(dB)

Max

0.5

0.6

0.8

1.0

1.5

2.0

Return Loss(dB)

≥50

≥50

≥50

≥50

≥50

≥50

Polarization Dependent Loss(dB)

Max

0.2

0.2

0.3

0.3

0.3

0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Fiber Type

Corning smf-28e or customer designation

Wavelength Dependent Loss(dB)

Max

0.6

0.6

0.6

0.8

0.8

0.8

Temperature correlation loss-40～85℃(dB)

Typical value

0.2

0.2

0.3

0.4

0.4

0.4

Max

0.5

0.5

0.5

0.5

0.5

0.5

Working Temperature(℃)

-40～85℃

Storage Temperature(℃)

-40～85℃

Steel Tube PVC G657A SC Connector Fiber Optic Coupler Splitter
